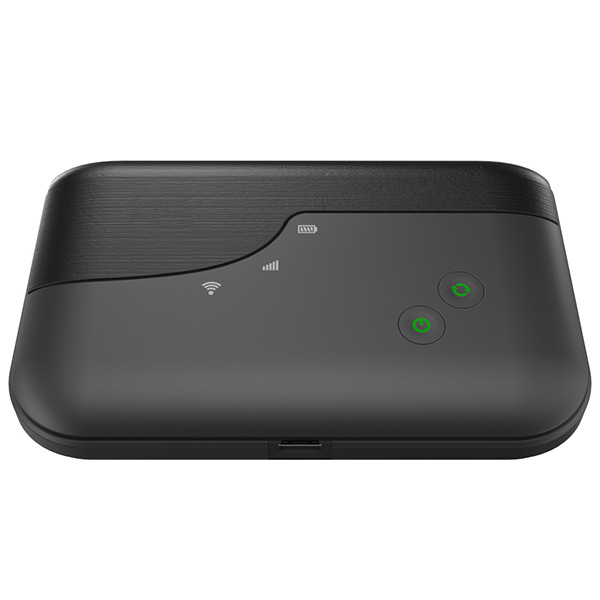

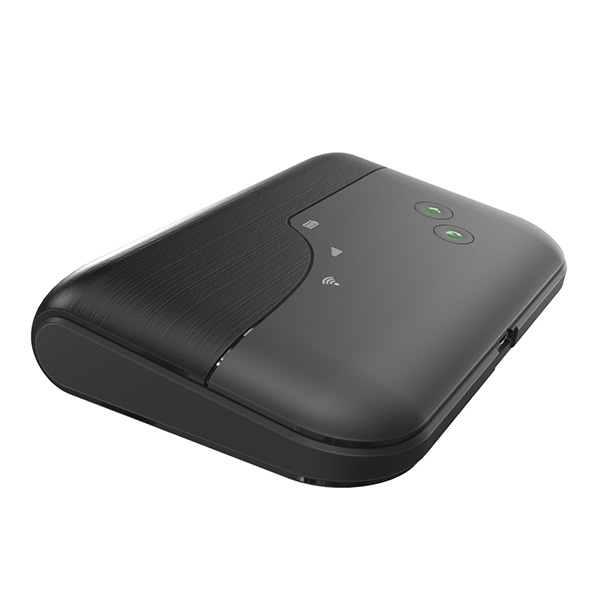

M100 | LTE Cat4 4G MIFI Router

The M100 is a LTE Cat 4. Wireless Mini pocket router (MiFI) which support multi-band LTE-FDD, LTE-TDD, DC-HSPA+ and (E)GPRS radio access technologies. The 4G MiFI provides high data rates which up to 150Mbps on downlink and 50Mbps on uplink. The User can access the internet through Wi-Fi or USB which provided by the MiFi. The pocket router also provides the interface which based on the Web to manage the device easily.  The MiFi is small enough to fit in the average packet, and is uniquely suited to provide robust wireless networking to travelers, students, or anyone else for work or play.

Category:

Description

 Product features

  • IEEE 802.11 b/g/n compliant
  • Backward compatible to IEEE 802.11b standards
  • Max physical rate up to 300Mbps in 802.11n 2×2 mode
  • Security Supports: Open, WPA-PSK, WPA2-PSK
  • Built-In LTE module for LTE access
  • Downlink throughput up to 150Mbps
  • Uplink throughput up to 50Mbps
  • LTE Release 10, Category 4
  • WWAN connection
  • LTE/HSPA+/WCDMA/EDGE/GPRS network mode
  • Built-in NAT function and firewall to protect your intranet
  • SMS (Short Message Service)
  • VPN Pass-Through Support
  • PPTP
  • L2TP
  • IPSec
  • Firmware upgrade through
  • FOTA
  • Web UI
  • RNDIS network interface based on USB

  Specification

  Hardware Specification

Hardware Characteristic
Solution Qualcomm
Support Button Ÿ   Power Button: On/Off, power on the MiFi after press 3 seconds; power off the MiFi after press 3 seconds;

Ÿ   WPS Button: On/Off, enable/disable the WPS function of Wi-Fi after press 3 seconds;

Ÿ   Software Reset Button: software reset after short click; Reload to default settings after press 6 seconds; Hardware reset after press 12 seconds;

LED Indication WIFI Indication

Ÿ   Blue light active for Wi-Fi enabled

Ÿ   Blue light flash quickly for the WPS function is enabled

Ÿ   Off for Wi-Fi disabled

2G/3G/4G Signal Indication

Ÿ   Blue light active for 2G/3G/4G network registered

Ÿ   Red light active for 2G/3G/4G network not registered

Ÿ   Blue light flash slowly for data connection established

Battery Indication

Ÿ   Red light active for battery low without charging

Ÿ   Purple light flash for battery charging

Ÿ   Blue light flash for battery changing full

Ÿ   Blue light active for battery normal state


SIM Card Slot One SIM Card Slot, Nano SIM card
USB Port USB 2.0 Micro interface
Power Adapter DC 5V/1A; USB Charge
Battery Type: Li-ion Battery 18650

Capacity: 2000mAh

Endurance: 7-8 hours (normal network situation)


WWAN
3GPP Release LTE Release 10, Category 4
Bands Supported Ÿ   LTE Bands: B1/B2/B3/B5/B7/B8/B20/B28/B38/B40/B41(120MHz BW)

Ÿ   UMTS Bands: B1/B2/B3/B5/B8

Ÿ   GSM Bands: GSM850 / E-GSM900 / DCS1800 / PCS1900

Ÿ   LTE Bands: B1/B2/B4/B5/B7/B8/B12/B28/B38/B40/B41(120MHz BW)

Ÿ   UMTS Bands: B1/B2/B4/B5/B8

Ÿ   GSM Bands: GSM850 / E-GSM900 / PCS1900


Data Rate Ÿ   LTE: Category 4; up to 150 Mb/s DL; up to 50 Mb/s UL

Ÿ   DC-HSPA+: DL cat.24, up to 42.2 Mb/s; UL cat.6, up to 5.76 Mb/s

Ÿ   GPRS: GPRS multi-slot class 12, CS1-CS4; up to 85.6 kbit/s DL/UL

Ÿ   EDGE: EDGE multi-slot class 12, MCS1-MCS9; up to 236.8 kbit/s DL/UL


Tx Power Ÿ   Class 3 (23+1/-1dBm) for LTE bands

Ÿ   Class 3 (24+1/-3dBm) for UMTS bands

Ÿ   Class 4 (33±2dBm) for GSM/E-GSM bands

Ÿ   Class 1 (30±2dBm) for DCS/PCS bands

Ÿ   Class E2 (27±3dBm) for GSM/E-GSM bands

Ÿ   Class E2 (26±3dBm) for DCS/PCS bands


Antenna 2 x Internal 3G/4G antenna
WLAN
Standard IEEE 802.11b/g/n
Output Power 15 dBm (802.11b)
Sensitivity Ÿ   802.11n: -64dBm@HT40, MCS7

Ÿ   802.11n: -67dBm@HT20, MCS7

Ÿ   802.11g: -70dBm@54M

Ÿ   802.11b: -82dBm@11M


Data Rate Ÿ   300Mbps (max) in 802.11n mode with 40MHz channel

Ÿ   150Mbps (max) in 802.11n mode with 20MHz channel

Ÿ   6/9/11/12/18/24/36/48/54Mbps in 802.11g mode

Ÿ   1/2/5.5/11Mbps in 802.11b mode


Frequency 2.4~2.483GHz
Modulation 802.11b: DSSS/CCK

802.11g: 64QAM OFDM/DSSS/CCK

802.11n: MIMO-OFDM (2×2 MIMO)


Access Mode CSMA/CA
Number of Channels America/FCC: (1-11 Channels)

Europe/ETSI: (1-13 Channels)


Antenna 2 x Internal Wi-Fi Antenna
Frequency range
FDD Band 30 (2300 MHz)
Uplink 2305 2315
Downlink 2350 2360







   Software Specification

Item Specification
WWAN LTE Profile Setting Mode: [Auto/Manual] (Default: Auto)

Ÿ   User Name

Ÿ   Password

Ÿ   Authentication: [Auto/PAP/CHAP] (Default: Auto)

Ÿ   APN

Connection Mode Ÿ   Auto Connect Network (Default)

Ÿ   Manual Connect Network


Short Message Support Support the SMS feature with the max storage is 255
USSD Support Support the USSD Service based on Web UI
WLAN WLAN IP Address (Default: 192.168.0.1)

Subnet Mask (Default: 255.255.255.0)

SSID: M100A-XXXXXX (XXXXXX is the last six digits of IMEI of the device)

DHCP Server Enable/Disable. (Default: Enable)

DHCP Client List (up to 32 WLAN clients)


WLAN Security None,

WPA/WPA2 (TKIP/AES) (default)

WPA-PSK (TKIP)


IP Supported IPV4 and IPv6 Dual-Stack Supported

SLAAC Auto-configuration for IPv6 Address


WPS Supported WPS-PIN, PBC
SIM PIN Management Support configuration the PIN code through Web-based GUI
Mobile App Android/iOS App Management
Advanced Feature Ÿ   MAC Filter / IP Filter (black/white list)

Ÿ   Network Time Protocol

Ÿ   L2TP/PPTP/IPSec VPN Pass-through

Ÿ   Wireless Network Scan


Device Information Ÿ   Device Information:

Model Name, Router F/W Version

Ÿ   Router Status:

WWAN IP Address, Subnet Mask, Default Gateway, DNS IP Address, Operator Name, Network Type, Signal Strength, Link Status.

Ÿ   WLAN Status:

SSID, Channel, Security, IP Address, Subnet Mask

Management Function Ÿ   Administrator Password and Timeout

Ÿ   Wizard quickly install

Ÿ   Configuration Backup/Restore

Ÿ   Reboot/Reset to Default

Ÿ   System Log

Ÿ   Power Save Mode


USB Ÿ   RNDIS Network Interface
Upgrade Method Ÿ   Web-based GUI

Ÿ   FOTA


Operation System Ÿ   Windows: Win7/10

Ÿ   MAC OS: 10.9+

Ÿ   Linux: Ubuntu 15.04+

Ÿ   Browser: Google Chrome, Safari


Frequency range
FDD Band 30 (2300 MHz)
Uplink 2305 2315
Downlink 2350 2360
