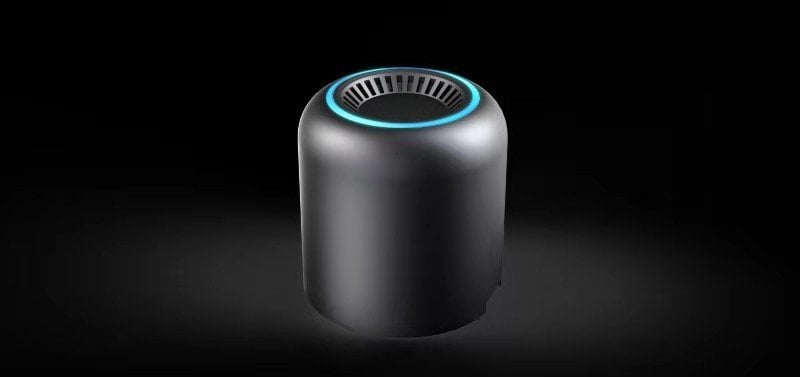

ML150 | AC1200 WIFI Mesh Router

ML150 WIFI Mesh Router is a Dual Band Wireless Mesh router with 802.11ac.  The maximum wireless speed is up to 1.2Gbps.  With the lastest Eash Mesh technology, each node automatically connects to the others, creating a distributed network throughout the wide area.  ML150 WIFI Mesh Router can be used as a single router or with other Mesh Routers for enhanced wireless coverage. ML150 WIFI Mesh Router can improve the connection quality of the wireless network in a simple way, users can enjoy a stable wireless network in a wide range.


  • Dual-Band, Transmission Rate up to 1200Mbps.
  • Easily add more MESH satellites to your existing WiFi system for additional WiFi coverage.
  • Adaptive routing technology automatically chooses the clearest channel & fastest path to avoid congestions.
  • A new type of connected system for seamless Wi-Fi coverage throughout your home, helping eliminate deadzones and buffering.
  • Easy Mesh and TR-069 supported
Transmission Rate1200Mbps
Memory128MB DDR2
AntennaBuilt-in 2*3dBi antenna
Operating Frequency2.4G/5.8G
  Receiving Sensitivity2.4G:11b: -76dbm@11Mbps, -83dbm@1Mbps 11g: -68dbm@54Mbps, -85dbm@6Mbps 11n: -67dbm@MCS7, -85dbm@MCS05.8G:11a: -30dbm@54Mbps, -30dbm@6Mbps 11n: HT20:-30dbm@MCS7, -30dbm@MCS011ac: HT80: -54dbm@MCS09,-79dbm@MCS0
Network Port2*10/100/1000 Mbps network port
Button1* Reset, reset by pressing in 15s.
LED IndicatorWiFi, PWR
Power12V 1.5A
Operating EnvironmentTemperature: -30℃~+55℃ (Operation), -40℃ ~+70℃ (Storage)Humidity (Non-condensing): 10%~90% (Operation), 5%~95%(Storage)
DimensionΦ120 mm × 135 mm
Operating ModeMESH Router
 NetworkWAN: Static IP/ Dynamic IP/PPPoE LAN:IP/DHCP ServerAdvanced Features:Static Routing、Port Mapping、Diagnostics
 Operating Channel2.4G:1、2、3、4、5、6、7、8、9、10、11、12、135.8G:36、 40、 44、 48、 52、 56、 60、 64、 149、 153、 157、 161、182、 186、 190、 194
 Traffic ControlGuarantee & Limited Bandwidth IP-based LimitedIP Grope – based Limited
 NATOne-to-One NAT Multi-nets NAT Virtual Server UPnP
 FilteringMAC FilteringURL Filtering
   WlanRadio frequency management•       Channel automatic and manual adjustment•       Power automatic adjustment•       Power manual adjustment•       Radio frequency time opening or closingWireless optimization•       Intelligent broadcasting speeding up•       Low rate of terminal access is prohibited;
 Cloud ManagementPulled policies and configuration settings from the cloud Remote managed provide network visibility and control Centrally Managed and Monitored
 MESHHigh power Mesh networkAuto path selection & Seamless roaming Path back-up & Mesh Router Load balance Auto power adjustment
  MaintenanceSystem Time Setting Firmware Upgrade Factory Defaults/Reboot Backup/RestoreSystem LogRemote Management
