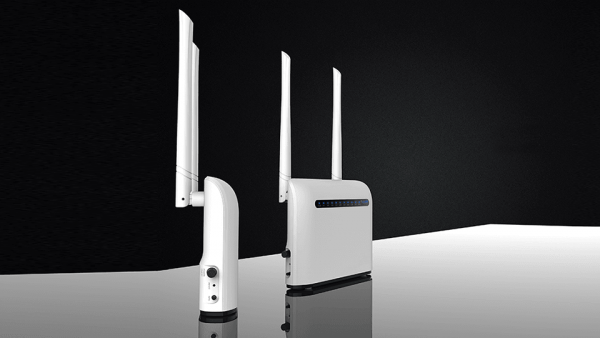

AceTel R810 4G LTE Cat6 CPE Router with Voice
Key Performance Highlights
- LTE-Advanced Cat 6 with Carrier Aggregation delivering up to 300 Mbps DL
- Powered by Qualcomm MDM9x40 cellular platform
- Dual-Band Wi-Fi 5 (802.11ac) AC1200 (300 Mbps on 2.4 GHz + 867 Mbps on 5 GHz)
- 4x Full Gigabit RJ45 ports (1x WAN + 3x LAN or 4x LAN)
- Integrated RJ11 voice port supporting VoLTE and CSFB HD voice
- Dual external SMA cellular antenna connectors for fringe reception
Core Platform Specs
| Model | R810 |
|---|---|
| Category | 4G Router |
| Chipset Platform | Qualcomm MDM9x40 + Realtek Gigabit Wi-Fi Platform |
| WiFi Standard | Dual-Band WiFi 5 (802.11ac) 2x2 MIMO up to 1200 Mbps |
AceTel R810 4G LTE Cat6 CPE Router — Technical Overview & Deployment Summary
Target Applications: Enterprise branch offices, SMBs, premium residential FWA broadband, retail chain stores, and voice-data bundled operator plans.
Cellular Platform & Speed: Qualcomm MDM9x40 Cat 6 platform, delivering up to 300 Mbps Downlink and 50 Mbps Uplink via 2-Carrier Aggregation (2CC CA).
Wi-Fi Standard & Capacity: Dual-Band Wi-Fi 5 (802.11ac) 2x2 MIMO delivering combined speeds up to 1200 Mbps (300 Mbps on 2.4 GHz + 867 Mbps on 5.8 GHz), supporting up to 64 concurrent users.
Wired Interfaces: 4x Full Gigabit RJ45 ports (1x WAN/LAN configurable + 3x LAN) for high-speed local NAS, POS, and PC networking.
Voice Capabilities: 1x RJ11 telephone interface supporting VoLTE, VoIP (SIP), and CSFB HD voice with concurrent high-speed data operation.
Antenna System: Internal high-gain cellular and dual-band Wi-Fi antennas, plus dual external SMA female connectors for optional high-gain cellular paddle antennas.
Failover & Redundancy: Dual-WAN support (Ethernet WAN + Cellular LTE) with automated health-check failover to ensure zero downtime for critical business links.
Management & Provisioning: Standard TR-069 ACS integration, SNMP v1/v2/v3, user-friendly Web GUI, and automated FOTA remote updates.
HIGH-PERFORMANCE CAT6 CELLULAR GATEWAY FOR ENTERPRISE & HOME
The AceTel R810 is a carrier-grade indoor LTE-Advanced CPE router tailored for demanding residential users and commercial enterprises. Powered by Qualcomm’s MDM9x40 baseband processor with 2-carrier aggregation (2CC CA), the R810 bonds separate cellular carrier channels to deliver up to 300 Mbps download speeds—double the capacity of standard Cat 4 routers.
Combined with 4 full Gigabit Ethernet ports and AC1200 Dual-Band Wi-Fi 5, the R810 delivers high-bandwidth, low-latency connectivity across laptops, smart TVs, cash registers, and IP cameras simultaneously.
COMPLETE DUAL-WAN BUSINESS CONTINUITY & HD VOICE
For retail and enterprise branch deployments, the R810 offers wired WAN failover: connect an existing fiber or cable modem to the Gigabit WAN port, and the R810 will instantly fail over to 4G LTE Cat 6 if the primary line goes down. The integrated RJ11 telephone port provides crystal-clear VoLTE calling, delivering a comprehensive all-in-one connectivity hub without requiring separate voice adapters.
SPECIFICATIONS
| Specification Category | Parameter Details |
|---|---|
| Model Code | AceTel R810 |
| Device Form Factor | Desktop LTE-Advanced Cat 6 CPE Router |
| Baseband Chipset | Qualcomm MDM9x40 Platform |
| Wi-Fi Architecture | Realtek RT8197 + RT8812 + RT8367 Gigabit Wi-Fi Platform |
| Cellular Standard | 3GPP Release 10/11, LTE Category 6 (2CC CA) |
| Peak Throughput | Downlink up to 300 Mbps; Uplink up to 50 Mbps |
| Carrier Aggregation | B1+B3, B1+B7, B1+B8, B1+B20, B3+B7, B3+B8, B3+B20, B7+B20, B38+B38, B40+B40 |
| Frequency Bands | LTE FDD: B1/B3/B7/B8/B20/B28; LTE TDD: B38/B40/B41; WCDMA: B1/B8; GSM: 900/1800 MHz |
| Wi-Fi Protocol | Dual-Band 802.11a/b/g/n/ac (2.4 GHz + 5.8 GHz), 2x2 MIMO |
| Wi-Fi Speed | 300 Mbps (2.4 GHz) + 867 Mbps (5 GHz) = AC1200 |
| Concurrent Users | Up to 64 connected wireless clients |
| Voice Port | 1x RJ11 FXS Port (VoLTE and CSFB HD voice) |
| Ethernet Ports | 4x 10/100/1000 Mbps Gigabit RJ45 (1x WAN + 3x LAN) |
| External Antenna Ports | 2x SMA Female Connectors for cellular main and diversity antennas |
| SIM Interface | 1x Standard 2FF SIM card slot |
| Power Supply | DC 12V / 1.5A external adapter |
| Network Features | Dual-WAN Failover, DHCP Server, NAT/NAPT, DMZ, DDNS, Port Forwarding |
| VPN Support | IPsec, PPTP, L2TP VPN Client & Pass-through |
| Management | TR-069, TR-181, SNMP, Web GUI, FOTA Remote Upgrade |
| Compliance | CE, FCC, RoHS compliant |
APPLICATIONS & INDUSTRY USE CASES
- Enterprise Branch SD-WAN & Failover: Providing redundant cellular backup for corporate offices, bank branches, and retail storefronts.
- Premium Residential Broadband: Replacing legacy DSL connections with 300 Mbps LTE-A wireless internet and telephone service.
- Temporary Commercial Venues: Rapidly deploying gigabit Wi-Fi and wired Ethernet at trade shows, pop-up stores, and event spaces.
- Smart Logistics & Warehousing: Providing wireless backhaul for barcode scanners, automated dispatch tablets, and IP security cameras.
Frequently Asked Questions
Frequently asked questions about technical specifications, carrier compliance, customization, and ordering for R810.
- What are the advantages of LTE Cat 6 Carrier Aggregation on the R810?
- LTE Cat 6 Carrier Aggregation (2CC CA) allows the R810 to bond two separate LTE spectrum bands together, doubling the peak download bandwidth up to 300 Mbps and maintaining stable, low-latency performance during peak network congestion.
- Does the R810 support full Gigabit wired connectivity?
- Yes, the R810 is equipped with 4x 10/100/1000 Mbps Gigabit Ethernet ports. The primary port can be configured as a WAN port for wireline fiber/cable backup with automatic failover to cellular LTE.
- How does the RJ11 port handle voice calling?
- The onboard RJ11 port supports high-definition Voice over LTE (VoLTE) and Circuit Switched Fallback (CSFB), enabling users to make and receive crystal-clear phone calls without interrupting active internet sessions.
- Can telecom operators manage the R810 remotely?
- Yes, the device fully integrates standard TR-069, TR-181, SNMP, and FOTA remote firmware upgrade protocols, making large-scale deployment and automated provisioning seamless for operators.
