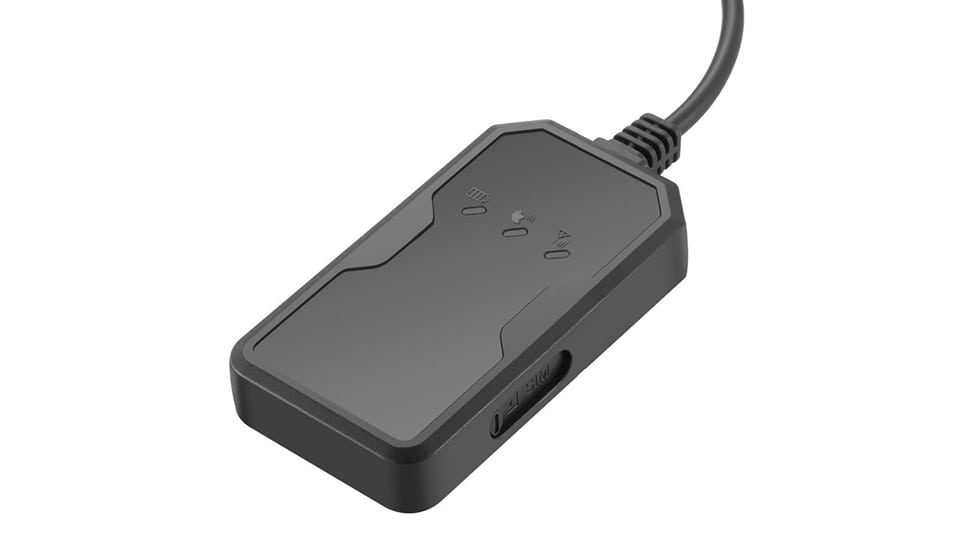

T810 GPRS/GSM Vehicle GPS Tracker

Acetel T810 GPS vehicle tracker is manufactured to meet the need of fleet management and M2M applications. It is providing functions such as SOS, fuel cutoff, electricity failure, geo-fence function, over speed warning, historical data upload, under different circumstances. T810 is also equipped with multiple interfaces including RS232 serial ports and a 1-wire interface (RFID, iButton, Temperature sensor), etc. It is an invaluable tool for fleet management, logistics, car rental, and buses.

Features

  • Wide Operating Voltage Range 8V to 32V DC
  • Multiple I/Os for Monitoring and Control
  • 1-wire Interface Supports Temperature Sensor and iButton Driver ID
  • GARMIN FMI/Multiple Sensors
  • one serial interface (can be UART or RS232),USB communication
  • Internal 3-axis Accelerometer for Motion Detection
  • Driving Behavior Monitoring and Incident Notification
  • Bluetooth Low Energy 4.0 Support
  • Internal GNSS Antenna and Optional External GNSS Antenna
  • 1000mAh battery ,REQUIRED WITH A BACKUP OF 4 HOURS FOR 1MIN SENDING INTERVAL
  • Location tracking of the vehicle including real-time as well as history tracking for up to last 90 days.

Full Description

Model T810
Dimension (LxWxH, mm) 100*42*18mm
Weight (g) TBD
Shell material ABS+PC (IP65)
General
Hardware Platform GPRS Module + MCU
CPU Speed ARM7-EJ@270MHz
Network / Band GSM850/EGSM900/DCS1800/PCS1900 quad-band
Antenna LTE/GPRS, GPS + Glonass, BLE
Internal GSM and GPS antenna.
GPS IPEX connector provision for conducted test for GPS compulsory for qualification
Memory(ROM+RAM) RAM 32MB/NAND 32MB
External SD Card No
Location history storage Location tracking of the vehicle including real-time as well as history tracking for up to last 90 days.
Non-volatile memory to store min 40,000 positional log
WIFI NO
wifi hotspot NO
Bluetooth NO
USB YES (for development)
GPS GPS/AGPS/GNSS
Gyroscope sensor YES
Accelerometer sensor Yes
Magnetometer sensor No
Other Sensors No
Device Tamper Proof YES
External supply Tamper Proof YES
Indication LED YES, 4nos. – Power, GSM, GPS, BT
SIM card Yes, COMPULSORY SUPPORT FOR EMBEDDED SIM
Battery 1000mAh , REQUIRED WITH A BACKUP OF 4 HOURS FOR 1MIN SENDING INTERVAL
Interface AT LEAST 3-PANIC BUTTON SUPPORT, MAXIMUM FEASIBILITY FOR 6-PANIC BUTTONS. EACH BUTTON TO HAVE INDICATOR LED FOR ITS OPERATING MODE
2. 2 Digital Output
3. 4 Digital   Input
4. 2 Analogs
5.one serial interface (can be UART or RS232, required only for testing, but mandatory for certification), USB communication
6. 1-wire interface (RFID, iButton, Temperature sensor)
7.ACC
Special
SOS YES, MINIMUM 3-PANIC BUTTONS WITH INDICATION LED OF STATUS
IP Code/Level IP65
FOTA YES, ADUPS or similar
Voltage/Current Specification
Voltage/Current 12V/24V support
For 12V System: A voltage spike of 65V, 4Ohms 200ms pulse-5a as per standard ISO7637-2:2004
For 24V System: A voltage spike o123V, 8Ohms 200ms pulse-5a as per standard ISO7637-2:2004Operating voltage:12V(7V~72V)
Max average current:<500 mA@12V
Normal operating current:<300 mA@12V
Operating current in Idle mode:<30mA@12V
Operating current in sleep mode:<4 mA@12V
Operator Specification
Temperature/Humility Operating temperature: -25℃ to +80℃
Storage temperature: -35℃ to +65℃
Relative Humility: 5% to 95% (Non-condensing)
Qualifications
AIS004 part 3 MANDATORY
Certifications
CE YES
ISO7637-2 YES,Pulse 1, 2a, 2b, 3a, 3b, 4 and 5a
AIS004 Part 3 YES,Bulk Current Injection, CTE Tests
AIS140 YES,RE and RI
ISO/ TS 16949 YES,Manufacturing unit
