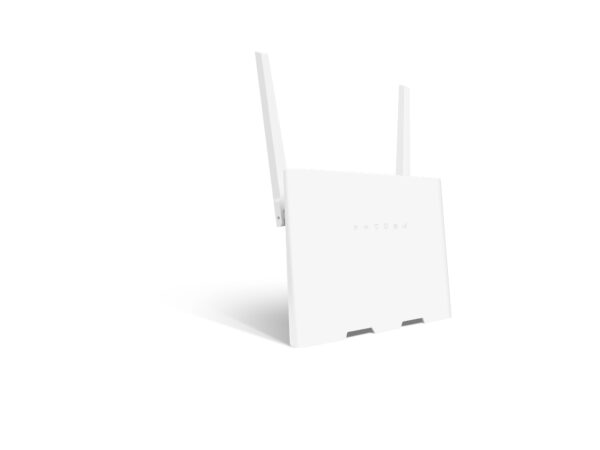

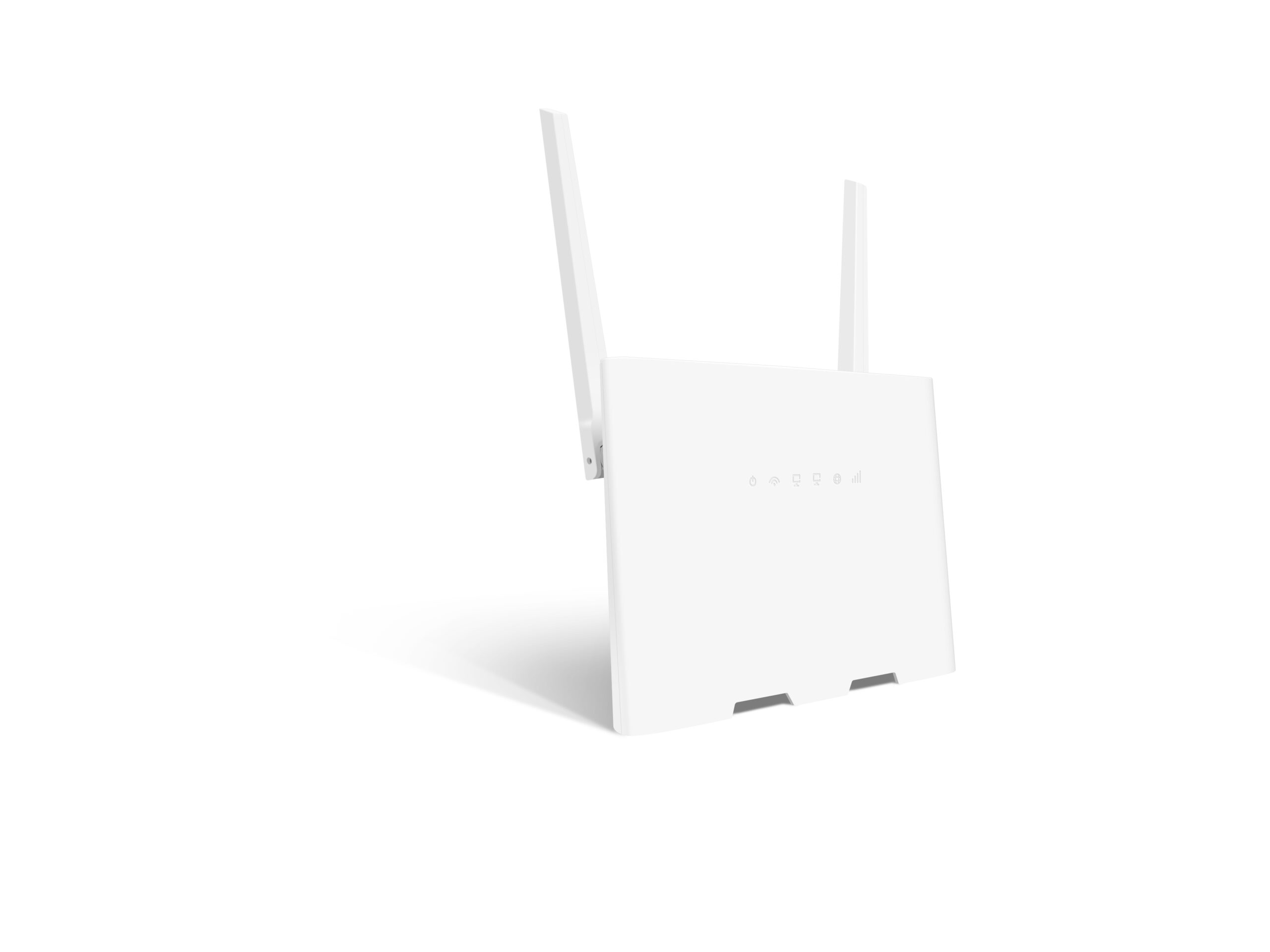

R1260S | LTE Cat.6 CPE 4G Router
Get smooth 4G LTE internet with R1260S router, affordable and fast (1200mbps). Supports all mainstream bands. Easy to manage with FOTA and TR069.
Description
Cost-effective LTE Cat.6 4G router
- 4G LTE Cat6. Maximum 300Mbps Uplink and 50Mbps Downlink.
- Dual-Band WIFI, 2.4GHz+5GHz DBDC, Wireless Data rate up to 1200Mbps
- 11b/g/b/ac
- 4 Gigabyte RJ45 ports, 1WAN+3LAN
- 1 RJ11 for Voice (Optional)
- Built-in battery (Optional)
- FOTA and TR069
- Automatic handover to wired network
Technical Specifications
| Basical Information | Model Name | R1260S |
| Form Factor | Desktop CPE | |
| Communication System | Technical Standard | Compatible with WCDMA, FDD-LTE, WCDMA,GSM 802.11 b/g/n/ac DBDC |
| Frequency（Customizable） | SKU1: LTE-FDD: B1/3/5/7/8/20/28, LTE-TDD B38/40/41, WCDMA: B1/B5/B8
SKU2: LTE-FDD: B2/3/4/5/7/8/12/28/66, LTE-TDD: B38/40/41, WCDMA: B2/B5/B8
Support LTE-A carrier aggregation | |
| WIFI | 2.4&5 GHz, WIFI 2*2 MIMO，802.11 b/g/n/ac DBDC | |
| Performance | Maximum Data Throughput | LTE CAT6 FDD-LTE 300Mbps/50Mbps |
| Hardware | Receive Diversity | Support Receive Diversity |
| Memory | Modem:512MB+256MB AP:256MB+16MB | |
| power consumption | <12W | |
| Power Voltage | DC12V/1A | |
| USIM/SIM | 2FF SIM card support SIM/USIM/UIM,standard 6 PIN SIM card interface, support 3V SIM card and 1.8V SIM card;internal push-push SIM slot | |
| LED | Power Indication LED（SYS）, WAN Signal Strength (RF), WiFi/WPS Indication LED(WIFI), WAN/LAN Status LED(ETH), Internet Status LED(NET), | |
| Antenna | 2 x LTE 2×2 MiMo 2 x WIFI (2.4GHz + 5GHz) 2*2 MIMO | |
| Buttons | POWER, Reset, WPS Power: CPE should send the information to network when the CPE is Powered off. | |
| Ethernet | 1WAN+3LAN, 10BaseT/100Base/1000Base automatic adaptive port | |
| Voice | 1* RJ11 Port, VOLTE/CSFB, Optional | |
| Reset | Pinhole | |
| ESD | ESD Protection circuit; Contact±8KV, Air±10KV | |
| SW Update | TR069 & Local Update | |
| Software | WIFI Mode | AP Only |
| WIFI Security | OPEN & WPA-PSK& WPA2-PSK & WPA-PSK/WPA2-PSK; | |
| SMS | Support | |
| Voice | VoLTE & CS voice Optional | |
| AGPS | Not Support | |
| IPv4 | Support IPv4 | |
| IPv6 | Support IPv6 | |
| Firewall | Mac/IP address filter, Port forwarding, WiFi Black/Whilte list ALG: SIP(must)/RSTP(optional) FTP(optional) | |
| Data Statistics | Support | |
| VPN Pass Through | PPTP/L2TP/IPSec | |
| SIM Lock | Support | |
| TR069 | Support | |
| Fota | Support; | |
| SNTP | Support | |
| DOS ATTACK | Support | |
| DMZ | Support | |
| HTTP | Support | |
| HTTPS | Support | |
| Certification | Depends on customization, cost related | |
| Certification | Operating Temperature | Normal:0°C to +45°C; |
| Environment | Storage Temperature | -20° C to +70° C |
| Humidity | 5%~ 95% | |
