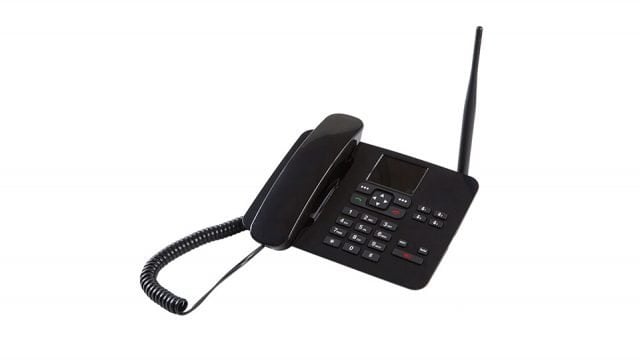

V10 | 4G LTE Fixed Wireless Phone

V10 LTE fixed wireless phone (FWP) is the business wireless device based on LTE internet. It supports VoLTE / CSFB telephone. The device has the characteristics of the strong reception signal, good call quality, long working hours and stable performance. It supports the WIFI hotspot function.

  • Support 4G LTE VoLTE
  • Support Wi-Fi hotspot functions.
  • Support 2G/3G/4G network.
  • Support call waiting, call divert,IP dialing etc.
  • Support dial delay function.
  • Support FOTA

Full Description

Model R800A
Dimensions TBD
Weight TBD
Form MiFi / Pocket Router
Communication
System (WAN)
Chipset Qualcomm MDM9x40
Frequency
Bands
LTE Band 1, 3, 7, 8, 20, 38
LTE CA 1A-3A, 1A-7A, 1A-8A, 1A-20A, 3A-3A, 3C, 3A-7A, 3A-8A, 3A-20A, 7A-7A, 7C, 7A-20A, B38+B38
UMTS Band 1, 8
GSM 900MHz, 1800MHz
Bandwidth LTE Band 1.4/3/5/10/15/20/40 MHz
Modulation Downlink QPSK/16-QAM/64-QAM/256-QAM
Uplink QPSK/16-QAM
Antenna Primary Internal, 2R1T
Diversity Internal, 2R, UMTS Optional
RF Power
Level
LTE Power Class 3 (23 +/-2dBm)
UMTS Power Class 3 (24 +1.7/-3.7dBm)
EDGE Power Class E2 (GSM850/900: 27dBm; DCS/PCS: 26dBm)
GPRS GSM850/900 Power Class 4: 33dBm; DCS/PCS Power Class 1: 30dBm)
Data Rate 4G 3GPP R13, Cat. 12, Downlink/Uplink up to 400Mbps/50Mbps
3G 3GPP R7 Downlink/Uplink up to 42Mbps/5.76Mbps
2G EGPRS Class33 Downlink/Uplink up to 296Kbps/236.8Kbps
WLAN Wi-Fi Chipset Qualcomm QCA6174
Frequency 2.4GHz, 5.8GHz
Protocol 802.11b/g/n/ac
Channel 2.4GHz: 1~13, 5.8GHz: 36~165
Antenna Internal, 2 x 2
Data Rate 802.11b Up to 11 Mbps
802.11g Up to 54 Mbps
802.11n Up to 300 Mbps
802.11ac Up to 867 Mbps
Feature Interface USB USB2.0
USIM Single, 3FF
MicroSD Up to 64GB
LED Power Power/Battery Status Indicator (2 Colors)
Network 4G/3G/2G Network Status Indicator  (3 Colors)
Signal Bar 4 bars for Network Signal Strength Indicator
Wi-Fi Wi-Fi Status Indicator
Message New SMS Indicator
Display (Optional) OLED 0.96′, 128X64 Pixels
2G/3G/4G Network Status
Power Status
Connection Status
WiFi Status
New SMS Status
Button Power Power Switch
WPS WPS Key
Reset Reset Key
Memory ROM 4Gbits
RAM 2Gbits
WebUI System Connection Status
Statistics
Samba (optional)
Device Management
Power Mangement
Andoid/iOS App Management
Mobile
Service
SMS Manager
Automatic APN matching according to USIM
Auto Data Connection
USSD Service
PIN/PUK Management
Network Mode Selection(2G/3G/LTE/Auto)
Router USB RNDIS Device
Up to 10 Wi-Fi users/devices
DHCP Server
IPv4/v6
VPN Passthrough
Firewall
WPS
Security via WEP, WPA-PSK, WPA2-PSK
Wi-Fi Settings
Battery Type Li-ion Polymer Battery
Capacity 3000mAh
Endurance 5-6 hours (normal network situation)
Operation System Windows Win7/8/10
MAC OS 10.9+
Linux Ubuntu 15.04+
Browser IE9+, Firefox, Google Chrome, Safari, Opera
Environment Power Supply USB, 5V1A
Working Temperature 0°C to 35°C
Storage Temperature -20°C to 60°C
Certification 3GPP Compliance CE/FCC/GCF, upon customer’s requirement
Meterial RoHS
