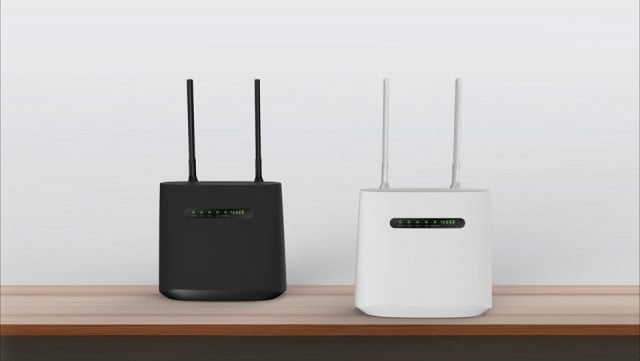

R820 | CAT6 LTE CPE VoLTE indoor 4G Router

The R820 delivers maximum speeds of 4G LTE CAT6 and CAT12 with 300/400Mbps through its Gigabit Ethernet port. It can also support RJ11 port with CSFB or VoLTE voice. It supports 2.4Ghz/5GHz Dual band 11ac WiFi capability.


  • LTE-A CAT6 / CAT12 CA Support
  • Maximum 300Mbps/400Mbps Downlink
  • WiFi 2.4GHz 5.8Ghz Dual band, 802.11b/g/n/ac
  • RJ45 ports: Giga Ports, 2x LANs or 1 x WAN + 1 x LAN
  • Internal and external 3G/4G primary and diversity antennas
  • RJ11 port for CSFB or VoLTE telephone
  • Andoid / iOS App Management
  • Supports FOTA and TR069
FormDesk Router
Communication System (WAN)ChipsetQualcomm MDM9x40
Frequency BandsLTEOption1: 1/2/3/5/7/8/20/38/40/41 Option2: 1/2/3/5/7/8/28/38/40/41 Option3: 2/3/4/5/7/8/20/38/40/41 Option4: 2/3/4/5/7/8/28/38/40/41
LTE CAOption1: 1A_3A,1A_5A,1A_7A,1A_8A,1A_20A,2C,2A_5A,2A_7A,3A_3A,3C,3A_5A,3A_7A,3A_8A,3A_20A,3A_38A,5A_7A,7A_7A,7C,7A_20A,38A_38A,38C,40A_40A,40C,41A_41A,41C Option2: 1A_3A,1A_5A,1A_7A,1A_8A,1A_20A,2C,2A_5A,2A_7A,3A_3A,3C,3A_5A,3A_7A,3A_8A,3A_28A,3A_38A,5A_7A,7A_7A,7C,7A_28A,38A_38A,38C,40A_40A,40C,41A_41A,41C Option3: 2C,2A_4A,2A_5A,2A_7A,3A_3A,3C,3A_5A,3A_7A,3A_8A,3A_20A,3A_38A,4A_4A,4C,4A_5A,4A_7A,5A_7A,7A_7A,7C,7A_20A,38A_38A,38C,40A_40A,40C,41A_41A,41C Option4: 2C,2A_4A,2A_5A,2A_7A,3A_3A,3C,3A_5A,3A_7A,3A_8A,3A_28A,3A_38A,4A_4A,4C,4A_5A,4A_7A,5A_7A,7A_7A,7C,7A_28A,38A_38A,38C,40A_40A,40C,41A_41A,41C
UMTS850/900/1900/2100 MHz
GSM850/900/1800/1900 MHz
BandwidthLTE Band1.4/3/5/10/15/20/40(2CA) MHz
AntennaInternalPrimary and Diversity (UMTS Optional)
ExternalOptional: Primary and Diversity
RF Power LevelLTEPower Class 3 (23 +/-2dBm)
UMTSPower Class 3 (24 +1.7/-3.7dBm)
EDGEPower Class E2 (GSM850/900: 27dBm; DCS/PCS: 26dBm)
GPRSGSM850/900 Power Class 4: 33dBm; DCS/PCS Power Class 1: 30dBm)
Data Rate4G3GPP Cat. 6, Downlink/Uplink up to 300Mbps/50Mbps
3G3GPP Downlink/Uplink up to 42Mbps/5.76Mbps
2GEGPRS Class33 Downlink/Uplink up to 296Kbps/236.8Kbps
WLANWi-FiChipsetQualcomm QCA6174
Frequency2.4GHz, 5.8GHz
Channel2.4GHz: 1~13, 5.8GHz: 36~165
AntennaInternal, 2 x 2
Data Rate802.11bUp to 11 Mbps
802.11gUp to 54 Mbps
802.11nUp to 300 Mbps
802.11acUp to 867 Mbps
FeatureInterfaceLAN/WAN2xRJ45 for 2xLANs or 1xWAN+1xLAN, or 1xRJ45 for WAN/LAN
RJ11Optional: CSFB or VoLTE
USIMSingle, 2FF
AntennaExternal antenna interface supported, internal/external auto-detecting
Power Jack12v1A interface
LEDPowerPower Status Indicator
Network4G/3G/2G Network Status Indicator  (3 Colors)
Signal BarSignal Strength 4 bars
Wi-FiWi-Fi Status Indicator
WPSWPS Enable Status Indicator
ButtonPowerPower Switch
ResetReset Key
WebUISystemConnection Status
Device Management
Power Mangement
Andoid/iOS App Management
Mobile ServiceSMS Manager
Automatic APN matching according to USIM
Auto Data Connection
USSD Service
PIN/PUK Management
Network Mode Selection(2G/3G/LTE/Auto)
Router64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
Up to 15 Wi-Fi users/devices
DHCP Server, IPv4/v6
Virtual Server, UPnP, DMZ, DDNS
VPN Passthrough, VPN Client (Optional)
DoS, SPI Firewall, IP Address Filter/Domain Filter
WPS, Virtual Server, UPnP, DMZ, DDNS
Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
Access Control, Local Management, Remote Management
Operation SystemWindowsXP/7/8/10
MAC OS10.7+
LinuxUbuntu 13.04+
BrowserIE9+, Firefox, Google Chrome, Safari, Opera
EnvironmentPower Supply12V1A
Working Temperature0°C to 45°C
Storage Temperature-20°C to 60°C
Certification3GPP ComplianceCE/FCC/GCF, upon customer’s requirement
