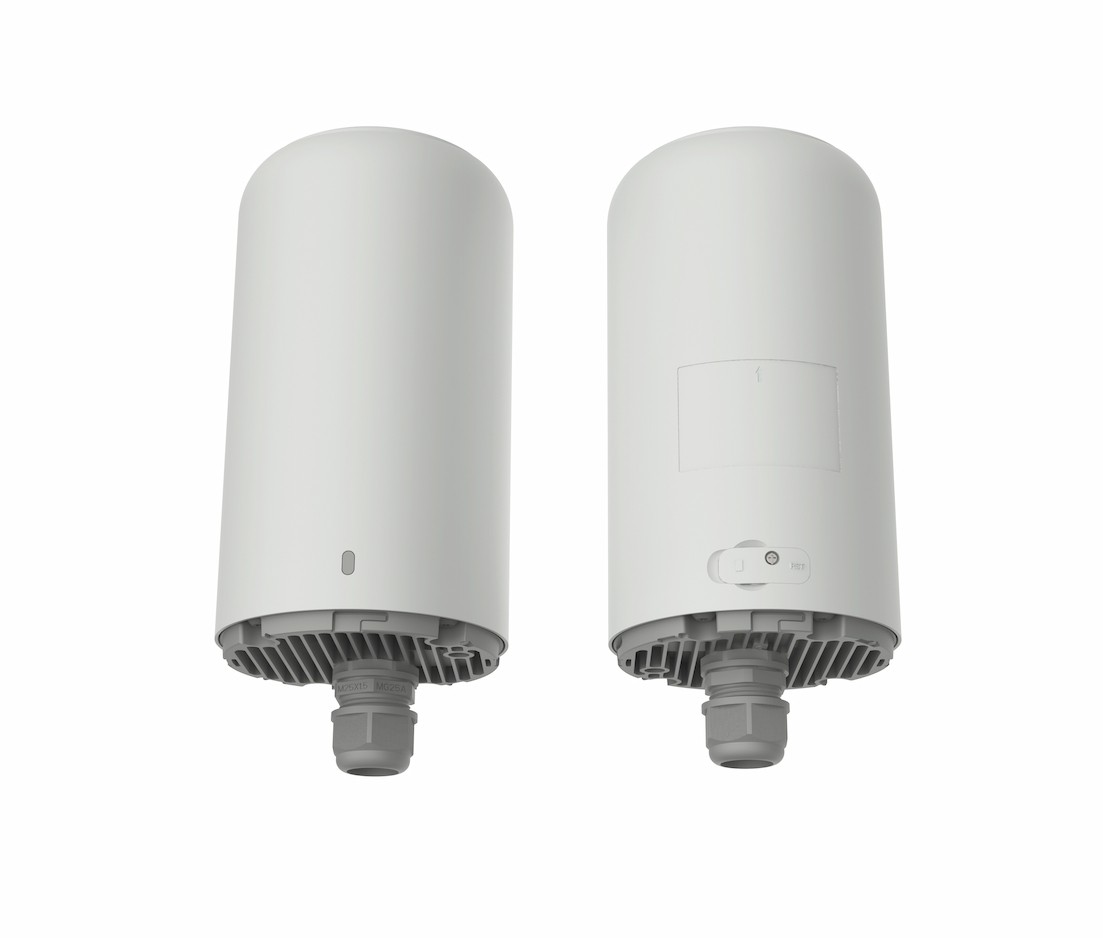

AceTel R867 4G LTE Outdoor CPE (Cat6 / Cat12 / Cat16)
Key Performance Highlights
- High-speed LTE-Advanced Pro up to Cat 16 (1 Gbps DL) / Cat 12 (600 Mbps DL)
- 3CC Carrier Aggregation (DL 3CA) and 256-QAM high-order modulation
- Integrated 4x4 MIMO high-gain directional antenna (up to 7 dBi)
- Gigabit Ethernet RJ45 port with standard PoE remote power input
- IP65 rated rugged weatherproof enclosure (-40°C to +55°C)
- Versatile WAN modes: IP Pass-Through, Transparent Bridge, and Router mode
Core Platform Specs
| Model | R867 |
|---|---|
| Category | 4G Router |
| Chipset Platform | Qualcomm Snapdragon X12 / MDM9x50 LTE Modem |
| WiFi Standard | N/A (outdoor ODU, Gigabit PoE to indoor router) |
AceTel R867 4G LTE Outdoor CPE — Technical Overview & Deployment Summary
Target Applications: High-bandwidth rural Fixed Wireless Access (FWA), remote suburban homes, multi-dwelling units (MDU), enterprise branch failover, and industrial video surveillance backhaul.
Cellular Architecture: 3GPP Release 12/13 LTE-Advanced Pro, available in Cat 6 (300 Mbps), Cat 12 (600 Mbps), and Cat 16 (1000 Mbps) tiers powered by Qualcomm MDM9x50 / Snapdragon X12 modems.
Carrier Aggregation & Modulation: Downlink 3CC Carrier Aggregation (3CA), 256-QAM downlink modulation, and uplink 64-QAM with intra-band contiguous 2CC support.
Antenna System: Integrated high-gain multi-band directional antenna (up to 7 dBi gain across 1.7–3.8 GHz) with 1T4R / 4x4 MIMO capability.
Hardware Interfaces: 1x Gigabit RJ45 Ethernet port (10/100/1000 Mbps) with PoE input, 1x Nano-SIM (4FF) card slot with weatherproof silicone seal.
Network Operating Modes: Flexible Layer-2 / Layer-3 operation including IP Pass-Through (bridge mode), Gateway mode, and Full NAT Routing.
Ingress & Operating Range: IP65 water and dust resistance, UV-resistant ABS+PC enclosure, operating reliably from -40°C to +55°C.
Management & Provisioning: Full TR-069 ACS integration, SNMP v1/v2/v3, Web GUI dashboard, and secure FOTA remote upgrade.
GIGABIT-CLASS LTE-ADVANCED PRO OUTDOOR WIRELESS ACCESS
The AceTel R867 is a carrier-grade outdoor cellular terminal engineered for high-bandwidth Fixed Wireless Access (FWA). Utilizing Qualcomm’s Snapdragon X12 / MDM9x50 platform, the R867 aggregates up to three cellular carriers (3CC CA) with 256-QAM modulation, achieving fiber-like download speeds up to 1 Gbps over 4G LTE networks.
By deploying the radio and antenna on an outdoor mast, rooftop, or building facade, the R867 avoids signal-killing building materials such as concrete, metal siding, and reflective glass. Combined with an integrated 4x4 MIMO directional antenna array delivering up to 7 dBi gain, the R867 captures distant cell tower signals with pristine signal-to-noise ratio.
ZERO-LOSS INDOOR INTEGRATION WITH IP PASS-THROUGH
The R867 connects to indoor customer premises equipment via a single outdoor Gigabit Ethernet cable that supplies both data and PoE power. In IP Pass-Through mode, the R867 operates as a transparent transparent bridge, assigning the operator’s public cellular IP address directly to the customer’s indoor Wi-Fi 6 router, firewall, or SD-WAN appliance, completely eliminating double-NAT complications for VoIP, gaming, and enterprise VPNs.
SPECIFICATIONS
| Specification Category | Parameter Details |
|---|---|
| Model Code | AceTel R867 |
| Device Form Factor | High-Gain Outdoor Directional CPE (ODU) |
| Cellular Modem | Qualcomm MDM9x50 / Snapdragon X12 LTE Modem |
| LTE Capability | 3GPP Release 12/13, LTE Category 6 / 12 / 16 |
| Peak Throughput | Downlink up to 1000 Mbps (Cat 16); Uplink up to 150 Mbps (Cat 13) |
| Carrier Aggregation | DL 3CC CA (up to 60 MHz combined bandwidth); UL contiguous 2CC CA |
| Modulation | DL 256-QAM / 64-QAM / 16-QAM / QPSK; UL 64-QAM / 16-QAM / QPSK |
| Frequency Bands | LTE FDD: B1/B3/B7/B20/B28; LTE TDD: B32/B38/B40/B41/B42/B43 (Customizable by region) |
| MIMO Configuration | 1T4R / 4x4 MIMO on B1/B3/B7/B38/B40/B41/B42/B43; 1T2R on B20/B28/B32 |
| Antenna Gain | 1–2 dBi (700–960 MHz); 6–7 dBi (1710–2690 MHz); 6–7 dBi (2300–3800 MHz) |
| Ethernet Port | 1x Gigabit RJ45 port (10/100/1000 Mbps) with PoE power input |
| SIM Card Slot | 1x Nano-SIM (4FF) with internal waterproof latch |
| Power Method | Standard Passive PoE (19V / 1.26A injector included) |
| Dimensions & Weight | 180 mm x 114 mm x 42 mm; Weight < 0.8 kg |
| Operating Temperature | -40°C to +55°C (-40°F to +131°F) |
| Ingress Rating | IP65 weather-resistant, UV-stabilized housing |
| Networking Modes | IP Pass-Through, Gateway Mode, NAT Router Mode |
| Management | TR-069, TR-181, SNMP, Web GUI, FOTA Remote Upgrade |
| Compliance | CE, FCC, RoHS, REACH compliant |
APPLICATIONS & INDUSTRY USE CASES
- Suburban & Rural Gigabit FWA: Providing high-speed home and home-office broadband where wireline speeds are insufficient.
- Enterprise Branch SD-WAN Backup: Primary or secondary cellular WAN link for bank branches, retail stores, and medical clinics.
- CCTV & Security Perimeter Monitoring: High-bandwidth uplink backhaul for multi-camera 4K outdoor surveillance systems.
- Construction & Temporary Worksites: Instant high-speed site connectivity for engineering trailers and project management offices.
Frequently Asked Questions
Frequently asked questions about technical specifications, carrier compliance, customization, and ordering for R867.
- Which LTE categories and speeds does the R867 platform support?
- The R867 hardware platform is available in LTE Cat 6 (300 Mbps), Cat 12 (600 Mbps), and Cat 16 (up to 1000 Mbps) configurations powered by Qualcomm MDM9x50 / X12 modem technology with 3-carrier aggregation (3CC CA) and 256-QAM.
- How does the R867 connect to indoor client networks?
- The outdoor unit (ODU) links to indoor access points or mesh routers via a single Gigabit Ethernet PoE cable. It supports IP Pass-Through mode, allowing the indoor gateway to receive the public WAN IP directly without double NAT.
- Can the R867 capture weak cellular signals in fringe areas?
- Yes, it integrates a high-efficiency 4x4 MIMO directional antenna providing up to 7 dBi gain across 1710–3800 MHz bands, delivering stable gigabit connectivity where typical indoor routers fail to connect.
- What remote management options are supported for telecom operators?
- The device supports TR-069, TR-181, SNMP, and FOTA remote firmware updates, enabling full lifecycle configuration and automated diagnostic polling through operator ACS platforms.
