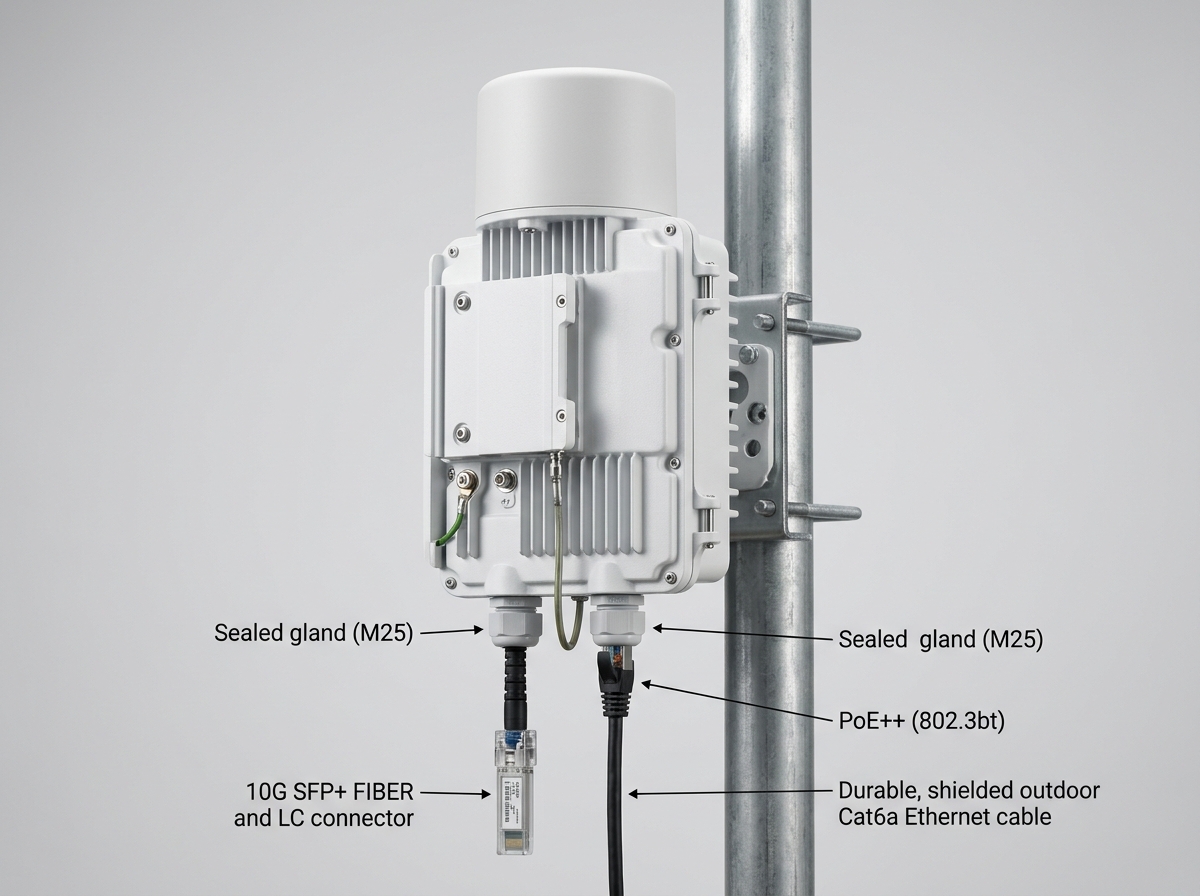

AceTel GN5000 Outdoor 5G Sub-6 Small Cell (gNodeB, 4x4 MIMO)

AceTel GN5000 Outdoor 5G Small Cell - Quick Specifications & B2B Buyer Summary

Network Architecture: 5G NR Standalone (SA) gNodeB (gNB), 3GPP Release 16 TDD

Sub-6 GHz Frequency Bands: N48 / N78 (3.3 GHz - 3.8 GHz) and N79 (4.5 GHz - 4.9 GHz)

RF Output & MIMO: 4x4 MIMO (4DL / 2UL), TX Power up to 24 dBm (250mW) per port

Max Throughput: Downlink up to 1520 Mbps, Uplink up to 680 Mbps (configured ratio dependent)

Backhaul Interfaces: 1x 10G SFP+ Optical Fiber Port, 1x 10G WAN RJ45 Ethernet Port

User Capacity: 64 to 256 active connected users per cell node

Power Supply: AC 90V–264V or PoE++ (IEEE 802.3bt compliant), Power Consumption < 80W

Enclosure & Protection: IP65 weatherproof aluminum alloy housing, operating temperature -30°C to +55°C

Management & Sync: Local WebGUI, TR-069, NETCONF, AceTel Remote RAN Cloud Manager, GPS / PTP 1588v2

OEM/ODM Customization: Carrier band adjustment, custom software stack, metal housing coloring, custom logo & packaging

---

CARRIER-GRADE ALL-IN-ONE 5G NR OUTDOOR GNODEB (GNB)

The AceTel GN5000 is an advanced, all-in-one outdoor 5G NR Small Cell gNodeB (gNB) solution engineered for high-density enterprise private 5G deployments and public carrier coverage expansion. Compliant with 3GPP Release 16 Time Division Duplex (TDD) standards, the GN5000 integrates the 5G baseband processing, radio transceiver unit, and RF front-end into a compact, weatherproof outdoor enclosure.

Powered by a 4x4 MIMO architecture with 256QAM high-order modulation, the GN5000 delivers up to 1.5 Gbps downlink data throughput and low latency connectivity. It provides mobile operators and enterprise network architects with a plug-and-play gNB solution that significantly reduces total cost of ownership (TCO) and simplifies cell site deployment.

---

HIGH CAPACITY & FLEXIBLE BACKHAUL FOR PRIVATE 5G

Designed to meet demanding industrial connectivity requirements, the GN5000 supports up to 256 active concurrent users per cell. It offers flexible backhaul options, featuring both a 10G WAN Ethernet port and a 10G SFP+ optical fiber interface for high-bandwidth backhaul transmission.

Whether connected directly to an on-premises 5G User Plane Function (UPF) or a cloud-hosted 5G Core (5GC), the GN5000 guarantees high-throughput, low-jitter performance for latency-sensitive M2M applications, HD video surveillance streams, and autonomous robotics fleets.

---

RUGGED IP65 WEATHERPROOF HOUSING & EASY INSTALLATION

Built for extreme environmental conditions, the GN5000 is housed in an IP65 rated aluminum alloy enclosure capable of operating across a wide temperature range of -30°C to +55°C. The system includes built-in surge suppression (1KV for network interfaces, 6KV for power interfaces) to protect against lightning and electrical transients.

With low overall power consumption (<80W) and support for Power over Ethernet ++ (PoE++ IEEE 802.3bt), the GN5000 eliminates the need for dedicated AC power drops at pole tops. Flexible wall and pole mounting kits enable rapid installation on utility poles, building facades, and industrial tower structures.

---

PRIVATE NETWORK APPLICATIONS & USE CASES

• Smart Manufacturing & Industry 4.0: Ultra-reliable low-latency 5G wireless coverage for automated guided vehicles (AGV), PLC telemetry, and smart factory sensors.
• Logistics & Warehousing: High-capacity 5G network coverage across expansive outdoor shipping yards, container terminals, and distribution hubs.
• Smart Mining & Heavy Industry: Rugged outdoor 5G backhaul for autonomous mining trucks, remote excavator control, and environmental monitoring.
• Public Venues & Campuses: Capacity expansion and fill-in coverage for university campuses, sports stadiums, and transportation hubs.

---

Technical Specifications

Parameter	Category	Specification Details
Radio Specifications	3GPP Standard	3GPP Release 16 TDD Standalone (SA) gNodeB
	Frequency Bands	Band N48/N78: 3.3 GHz - 3.8 GHz; Band N79: 4.5 GHz - 4.9 GHz
	Channel Bandwidth	10MHz, 20MHz, 40MHz, 80MHz, 100MHz (All 3GPP defined OBW/IBW up to 400MHz)
	Carrier Aggregation	N48 CA (10+20MHz / 20+20MHz), N78 CA (40+40MHz @IBW within 200MHz)
	Sub-Carrier Spacing	30 kHz (SCS)
	Transmit Power	4 dBm to 24 dBm per port (250 mW per port)
	MIMO & Modulation	4x4 MIMO (4DL / 2UL), 256QAM Downlink / 256QAM Uplink
	Antenna Options	4x4 Internal Directional Antenna (8 dBi peak gain) or 4x N-Type / SMA External Connectors
Data Throughput	Downlink Rate	Up to 1520 Mbps (DDDSU / 7DS2U slot ratio)
	Uplink Rate	Up to 680 Mbps (DSUUU slot ratio)
	Active Users	64 Connected / Active Users (scalable up to 256 connected users)
	Effective Coverage	100m to 150m Line-of-Sight (LOS) radius
Interfaces & Electrical	Backhaul Ports	1x 10G SFP+ Optical Port, 1x 10G RJ45 WAN Ethernet Port
	Antenna Connectors	4x SMA / N-Type Female (5G NR), 1x SMA Female (GPS Antenna)
	LED Indicators	Power, Service Status, Network Link, GPS Sync
	Power Supply	AC 90V - 264V (50/60Hz) or PoE++ (IEEE 802.3bt compliant)
	Power Consumption	< 80 W
	Surge Protection	Network Interface: 1 KV; Power Interface: 6 KV
Synchronization & Software	Time Synchronization	Integrated GPS / GLONASS / Galileo GNSS Receiver, PTP IEEE 1588v2
	Network Management	Local WebGUI, TR-069, NETCONF, AceTel Remote RAN Cloud Manager
	Protocol Features	IPv4/IPv6 Dual Stack, QoS 5QI, DSCP Marking, VLAN, ViNR/VoNR, EPS Fallback, CBSD-SAS (N48)
	Security & Encryption	Integrity (NIA1/NIA2), Ciphering (NEA1/NEA2), PCI Confliction Detection, Close Loop Power Control
Physical & Environmental	Enclosure Rating	IP65 Weatherproof Aluminum Alloy Housing
	Dimensions	240 mm x 320 mm x 100 mm (W x H x D)
	Weight	< 6.0 kg (excluding mounting brackets)
	Installation	Pole Mount and Wall Mount Kits (included)
	Operating Temperature	-30°C to +55°C (-22°F to +131°F)
	Operating Humidity	5% to 95% (non-condensing)
