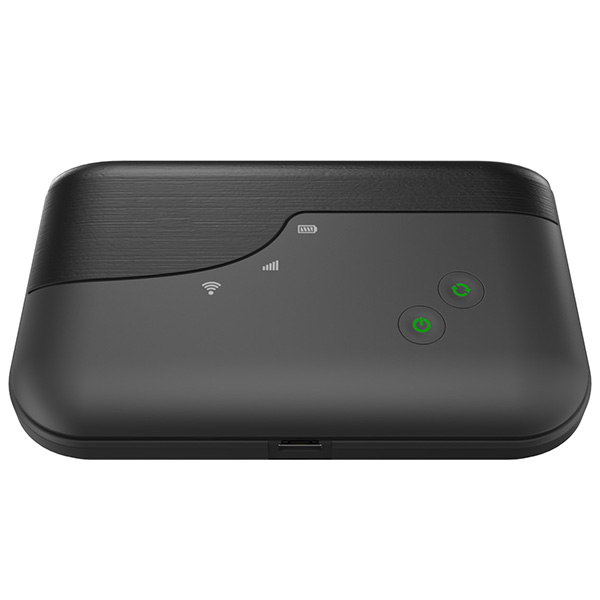

AceTel M100 4G LTE Cat4 MiFi Router

Product features

• IEEE 802.11 b/g/n compliant
• Backward compatible to IEEE 802.11b standards
• Max physical rate up to 300Mbps in 802.11n 2×2 mode
• Security Supports: Open, WPA-PSK, WPA2-PSK
• Built-In LTE module for LTE access
• Downlink throughput up to 150Mbps
• Uplink throughput up to 50Mbps
• LTE Release 10, Category 4
• WWAN connection
• LTE/HSPA+/WCDMA/EDGE/GPRS network mode
• Built-in NAT function and firewall to protect your intranet
• SMS (Short Message Service)
• VPN Pass-Through Support
• PPTP
• L2TP
• IPSec
• Firmware upgrade through
• FOTA
• Web UI
• RNDIS network interface based on USB

Specification

Hardware Specification

Hardware Characteristic
Solution	Qualcomm
Support Button	Ÿ   Power Button: On/Off, power on the MiFi after press 3 seconds; power off the MiFi after press 3 seconds; Ÿ   WPS Button: On/Off, enable/disable the WPS function of Wi-Fi after press 3 seconds; Ÿ   Software Reset Button: software reset after short click; Reload to default settings after press 6 seconds; Hardware reset after press 12 seconds;
LED Indication	WIFI Indication Ÿ   Blue light active for Wi-Fi enabled Ÿ   Blue light flash quickly for the WPS function is enabled Ÿ   Off for Wi-Fi disabled 2G/3G/4G Signal Indication Ÿ   Blue light active for 2G/3G/4G network registered Ÿ   Red light active for 2G/3G/4G network not registered Ÿ   Blue light flash slowly for data connection established Battery Indication Ÿ   Red light active for battery low without charging Ÿ   Purple light flash for battery charging Ÿ   Blue light flash for battery changing full Ÿ   Blue light active for battery normal state
SIM Card Slot	One SIM Card Slot, Nano SIM card
USB Port	USB 2.0 Micro interface
Power Adapter	DC 5V/1A; USB Charge
Battery	Type: Li-ion Battery 18650 Capacity: 2000mAh Endurance: 7-8 hours (normal network situation)
WWAN
3GPP Release	LTE Release 10, Category 4
Bands Supported	Ÿ   LTE Bands: B1/B2/B3/B5/B7/B8/B20/B28/B38/B40/B41(120MHz BW) Ÿ   UMTS Bands: B1/B2/B3/B5/B8 Ÿ   GSM Bands: GSM850 / E-GSM900 / DCS1800 / PCS1900
Ÿ   LTE Bands: B1/B2/B4/B5/B7/B8/B12/B28/B38/B40/B41(120MHz BW) Ÿ   UMTS Bands: B1/B2/B4/B5/B8 Ÿ   GSM Bands: GSM850 / E-GSM900 / PCS1900
Data Rate	Ÿ   LTE: Category 4; up to 150 Mb/s DL; up to 50 Mb/s UL Ÿ   DC-HSPA+: DL cat.24, up to 42.2 Mb/s; UL cat.6, up to 5.76 Mb/s Ÿ   GPRS: GPRS multi-slot class 12, CS1-CS4; up to 85.6 kbit/s DL/UL Ÿ   EDGE: EDGE multi-slot class 12, MCS1-MCS9; up to 236.8 kbit/s DL/UL
Tx Power	Ÿ   Class 3 (23+1/-1dBm) for LTE bands Ÿ   Class 3 (24+1/-3dBm) for UMTS bands Ÿ   Class 4 (33±2dBm) for GSM/E-GSM bands Ÿ   Class 1 (30±2dBm) for DCS/PCS bands Ÿ   Class E2 (27±3dBm) for GSM/E-GSM bands Ÿ   Class E2 (26±3dBm) for DCS/PCS bands
Antenna	2 x Internal 3G/4G antenna
WLAN
Standard	IEEE 802.11b/g/n
Output Power	15 dBm (802.11b)
Sensitivity	Ÿ   802.11n: -64dBm@HT40, MCS7 Ÿ   802.11n: -67dBm@HT20, MCS7 Ÿ   802.11g: -70dBm@54M Ÿ   802.11b: -82dBm@11M
Data Rate	Ÿ   300Mbps (max) in 802.11n mode with 40MHz channel Ÿ   150Mbps (max) in 802.11n mode with 20MHz channel Ÿ   6/9/11/12/18/24/36/48/54Mbps in 802.11g mode Ÿ   1/2/5.5/11Mbps in 802.11b mode
Frequency	2.4~2.483GHz
Modulation	802.11b: DSSS/CCK 802.11g: 64QAM OFDM/DSSS/CCK 802.11n: MIMO-OFDM (2×2 MIMO)
Access Mode	CSMA/CA
Number of Channels	America/FCC: (1-11 Channels) Europe/ETSI: (1-13 Channels)
Antenna	2 x Internal Wi-Fi Antenna
Frequency range FDD Band 30 (2300 MHz)	Uplink	2305	2315
Downlink	2350	2360

Software Specification

Item	Specification
WWAN	LTE Profile Setting Mode: [Auto/Manual] (Default: Auto) Ÿ   User Name Ÿ   Password Ÿ   Authentication: [Auto/PAP/CHAP] (Default: Auto) Ÿ   APN
Connection Mode	Ÿ   Auto Connect Network (Default) Ÿ   Manual Connect Network
Short Message Support	Support the SMS feature with the max storage is 255
USSD Support	Support the USSD Service based on Web UI
WLAN	WLAN IP Address (Default: 192.168.0.1) Subnet Mask (Default: 255.255.255.0) SSID: M100A-XXXXXX (XXXXXX is the last six digits of IMEI of the device) DHCP Server Enable/Disable. (Default: Enable) DHCP Client List (up to 32 WLAN clients)
WLAN Security	None, WPA/WPA2 (TKIP/AES) (default) WPA-PSK (TKIP)
IP Supported	IPV4 and IPv6 Dual-Stack Supported SLAAC Auto-configuration for IPv6 Address
WPS Supported	WPS-PIN, PBC
SIM PIN Management	Support configuration the PIN code through Web-based GUI
Mobile App	Android/iOS App Management
Advanced Feature	Ÿ   MAC Filter / IP Filter (black/white list) Ÿ   Network Time Protocol Ÿ   L2TP/PPTP/IPSec VPN Pass-through Ÿ   Wireless Network Scan
Device Information	Ÿ   Device Information: Model Name, Router F/W Version Ÿ   Router Status: WWAN IP Address, Subnet Mask, Default Gateway, DNS IP Address, Operator Name, Network Type, Signal Strength, Link Status. Ÿ   WLAN Status: SSID, Channel, Security, IP Address, Subnet Mask
Management Function	Ÿ   Administrator Password and Timeout Ÿ   Wizard quickly install Ÿ   Configuration Backup/Restore Ÿ   Reboot/Reset to Default Ÿ   System Log Ÿ   Power Save Mode
USB	Ÿ   RNDIS Network Interface
Upgrade Method	Ÿ   Web-based GUI Ÿ   FOTA
Operation System	Ÿ   Windows: Win7/10 Ÿ   MAC OS: 10.9+ Ÿ   Linux: Ubuntu 15.04+ Ÿ   Browser: Google Chrome, Safari
Frequency range FDD Band 30 (2300 MHz)	Uplink	2305	2315
Downlink	2350	2360
