4G Router Platform

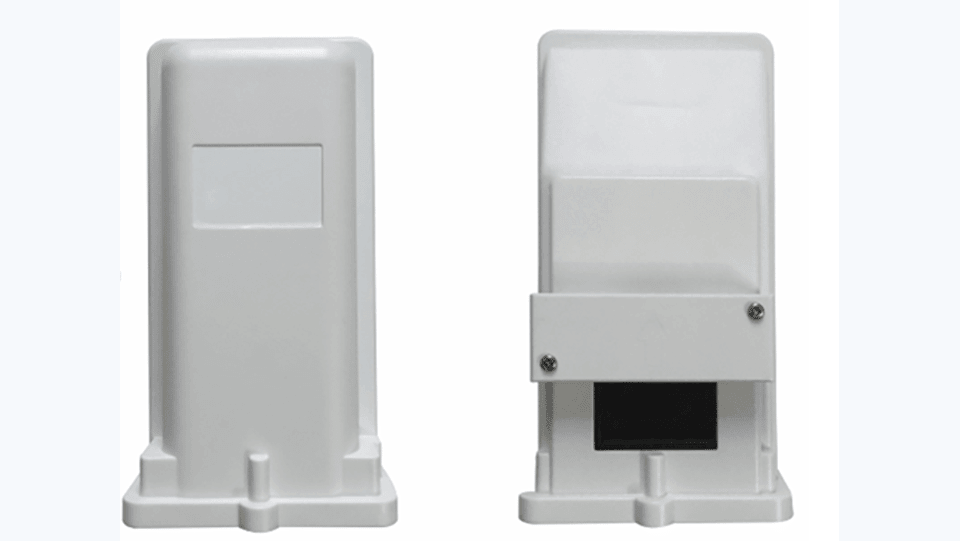

AceTel R11 4G LTE Cat4 Outdoor CPE Router
Key Performance Highlights
- LTE CAT4 Support
- Maximum 150Mbps Downlink 50Mbps Uplink
- RJ45 ports: 1 RJ45 POE
- Build-in 1T2R dual-polarized directional antenna
- Support WEB page management, Easy to install.
- Support VPN, support dual TR069, and SNMP.
Core Platform Specs
| Model | R11 |
|---|---|
| Category | 4G Router |
| Chipset Platform | Qualcomm MDM9x07 |
| WiFi Standard | N/A (outdoor ODU, no integrated WiFi) |
Features
- LTE CAT4 Support
- Maximum 150Mbps Downlink 50Mbps Uplink
- RJ45 ports: 1 RJ45 POE
- Build-in 1T2R dual-polarized directional antenna
- Support WEB page management, Easy to install.
- Support VPN, support dual TR069, and SNMP.
- Supports FOTA and TR069
| Model | R11 | ||
| Form | LTE Outdoor CPE | ||
| Communication System (WAN) | Chipset | Qualcomm MDM9x07 | |
| Frequency Bands | LTE | Band 1, 2, 3, 5, 7, 8, 28, 38, 40 | |
| UMTS | Band 1, 2, 3, 5, 8 | ||
| CDMA/EVDO | Band Class 0, 1 (MDM9607 only) | ||
| GSM | 900MHz, 1800MHz, 850MHz, 1900MHz | ||
| Bandwidth | LTE Band | 1.4/3/5/10/15/20 MHz, comply with 3GPP | |
| Modulation | Downlink | QPSK/16-QAM/64-QAM, comply with 3GPP | |
| Uplink | QPSK/16-QAM, comply with 3GPP | ||
| Antenna | Internal | Build in 1T2R dual-polarized directional antenna | |
| RF Power Level | LTE FDD | Power Class 3 (23 +/-2dBm) | |
| UMTS | Power Class 3 (24 +1.7/-3.7dBm) | ||
| EDGE | Power Class E2 (GSM850/900: 27dBm; DCS/PCS: 26dBm) | ||
| GPRS | GSM850/900 Power Class 4: 33dBm; DCS/PCS Power Class 1: 30dBm) | ||
| Data Rate | 4G | 3GPP Cat. 4, Downlink/Uplink up to 150Mbps/50Mbps | |
| 3G | 3GPP Downlink/Uplink up to 42Mbps/5.76Mbps 3GPP2 Downlink/Uplink up to 3.1Mbps/1.8Mbps (MDM9607 only) | ||
| 2G | EGPRS Class33 Downlink/Uplink up to 296Kbps/236.8Kbps | ||
| Feature | Interface | RJ45 | YES, POE |
| USIM | Single, 2FF | ||
| Power Jack | DC 15V @ 500mA, Cat5 remote power supply (PoE) | ||
| LED | Power | Power Status Indicator | |
| Network | 4G/3G/2G Network Status Indicator | ||
| LAN/WAN | LEDs for Ethernet Indicator | ||
| Memory | 4Gbits + 2Gbits | ||
| WebUI | System | Connection Status | |
| Statistics | |||
| Device Management | |||
| Power Mangement | |||
| Mobile Service | SMS Manager | ||
| Automatic APN matching according to USIM | |||
| Auto Data Connection | |||
| USSD Service | |||
| PIN/PUK Management | |||
| Network Mode Selection(2G/3G/LTE/Auto) | |||
| IPv4/v6 | |||
| VPN Passthrough, VPN Client (Optional) | |||
| Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access) | |||
| TR069 | |||
| Virtual Server, UPnP, DMZ, DDNS | |||
| DoS, SPI Firewall, IP Address Filter/Domain Filter | |||
| IP and MAC Address Binding | |||
| Traffic Control (IP QoS) | |||
| Access Control, Local Management, Remote Management | |||
| Operation System | Windows | XP/7/8/10 | |
| MAC OS | 10.7+ | ||
| Linux | Ubuntu 13.04+ | ||
| Browser | IE9+, Firefox, Google Chrome, Safari, Opera | ||
| Working Temperature | `-40～60°C | ||
| Storage Temperature | `-40～85℃ | ||
| Certification | 3GPP Compliance | CE/FCC/GCF, upon customer’s requirement | |
| Meterial | RoHS |
