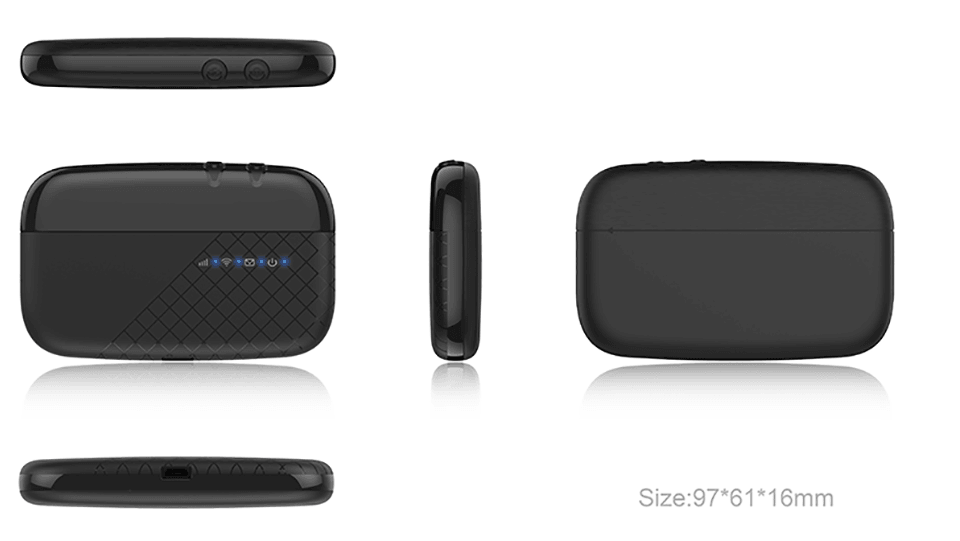

AceTel R705 4G LTE Cat4 MiFi Router

Features

• Qualcomm MDM9207
• LTE CAT4 Support, LTE WCDMA EVDO GSM
• Maximum 150Mbps Downlink, 50Mbps Uplink
• WiFi 2.4GHz , 802.11b/g/n
• 2000mAh Li-ion battery
• USB Mass Storage by Micro SD, up to 64GB
• Android / iOS App Management
• Supports FOTA and TR069

Model	R705
Dimensions	97 x 61 x 15.5mm
Weight	TBD
Form	MiFi / Pocket Router
Communication System (WAN)	Chipset		Qualcomm MDM9x07
Frequency Bands	LTE	Band 1, 3, 4, 5, 7, 8, 38, 40, 41
UMTS	Band 1, 8
CDMA/EVDO	BC0 (MDM9607 only)
GSM	900MHz, 1800MHz, 850MHz
Bandwidth	LTE Band	1.4/3/5/10/15/20 MHz
Modulation	Downlink	QPSK/16-QAM/64-QAM
Uplink	QPSK/16-QAM
Antenna	Primary	Internal
Diversity	Internal, UMTS Optional
RF Power Level	LTE FDD	Power Class 3 (23 +/-2dBm)
UMTS	Power Class 3 (24 +1.7/-3.7dBm)
EDGE	Power Class E2 (GSM850/900: 27dBm; DCS/PCS: 26dBm)
GPRS	GSM850/900 Power Class 4: 33dBm; DCS/PCS Power Class 1: 30dBm)
Data Rate	4G	3GPP R10, Cat. 4, Downlink/Uplink up to 150Mbps/50Mbps
3G	3GPP R7 Downlink/Uplink up to 42Mbps/5.76Mbps 3GPP2 Downlink/Uplink up to 3.1Mbps/1.8Mbps (MDM9607)
2G	EGPRS Class33 Downlink/Uplink up to 296Kbps/236.8Kbps
WLAN	Wi-Fi	Chipset	RealTek 8192ES
Frequency	2.4GHz
Protocol	802.11b/g/n
Channel	1~13
Antenna	Internal, 2 x 2
Data Rate	802.11b	Up to 11 Mbps
802.11g	Up to 54 Mbps
802.11n	Up to 300 Mbps
Feature	Interface	USB	USB2.0
USIM	Single, 2FF
MicroSD	Up to 32GB
LED	Power	Power/Battery Status Indicator
Network	4G/3G/2G Network Status Indicator
Wi-Fi	Wi-Fi Status Indicator
Message	New SMS Indicator
Button		Power
WPS
Reset
Memory	ROM	2Gbits
RAM	2Gbits
WebUI	System	Connection Status
Statistics
Samba (optional)
Device Management
Power Mangement
Andoid/iOS App Management
Mobile Service	SMS Manager
Automatic APN matching according to USIM
Auto Data Connection
USSD Service
PIN/PUK Management
Network Mode Selection(2G/3G/LTE/Auto)
Router	USB RNDIS Device
Up to 10 Wi-Fi users/devices
DHCP Server
IPv4/v6
VPN Passthrough
Firewall
WPS
Security via WEP, WPA-PSK, WPA2-PSK
Wi-Fi Settings
Battery	Type	Li-ion Polymer Battery
Capacity	2000mAh
Endurance	5-6 hours (normal network situation)
Operation System	Windows	XP/7/8/10
MAC OS	10.7+
Linux	Ubuntu 13.04+
Browser	IE9+, Firefox, Google Chrome, Safari, Opera
Environment	Power Supply		USB, 5V1A
Working Temperature		0°C to 35°C
Storage Temperature		-20°C to 60°C
Certification	3GPP Compliance		CE/FCC/GCF, upon customer’s requirement
Meterial		RoHS
