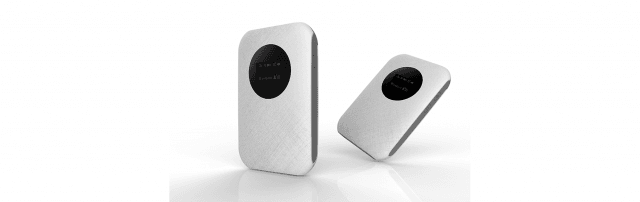

AceTel R800 4G LTE Cat6 MiFi Router

Features

• Qualcomm MDM9240
• LTE-A CAT6 / CAT12 CA Support
• Maximum 300Mbps/400Mbps Downlink
• WiFi 2.4GHz 5.8Ghz Dual band, 802.11b/g/n/ac
• 3000mAh Li-ion battery
• USB Mass Storage by Micro SD, up to 64GB
• Samba Supported
• Android / iOS App Management
• Supports FOTA and TR069

Specification

Model	R800A
Dimensions	TBD
Weight	TBD
Form	MiFi / Pocket Router
Communication System (WAN)	Chipset		Qualcomm MDM9x40
Frequency Bands	LTE	Band 1, 3, 7, 8, 20, 38
LTE CA	1A-3A, 1A-7A, 1A-8A, 1A-20A, 3A-3A, 3C, 3A-7A, 3A-8A, 3A-20A, 7A-7A, 7C, 7A-20A, B38+B38
UMTS	Band 1, 8
GSM	900MHz, 1800MHz
Bandwidth	LTE Band	1.4/3/5/10/15/20/40 MHz
Modulation	Downlink	QPSK/16-QAM/64-QAM/256-QAM
Uplink	QPSK/16-QAM
Antenna	Primary	Internal, 2R1T
Diversity	Internal, 2R, UMTS Optional
RF Power Level	LTE	Power Class 3 (23 +/-2dBm)
UMTS	Power Class 3 (24 +1.7/-3.7dBm)
EDGE	Power Class E2 (GSM850/900: 27dBm; DCS/PCS: 26dBm)
GPRS	GSM850/900 Power Class 4: 33dBm; DCS/PCS Power Class 1: 30dBm)
Data Rate	4G	3GPP R13, Cat. 12, Downlink/Uplink up to 400Mbps/50Mbps
3G	3GPP R7 Downlink/Uplink up to 42Mbps/5.76Mbps
2G	EGPRS Class33 Downlink/Uplink up to 296Kbps/236.8Kbps
WLAN	Wi-Fi	Chipset	Qualcomm QCA6174
Frequency	2.4GHz, 5.8GHz
Protocol	802.11b/g/n/ac
Channel	2.4GHz: 113, 5.8GHz: 36165
Antenna	Internal, 2 x 2
Data Rate	802.11b	Up to 11 Mbps
802.11g	Up to 54 Mbps
802.11n	Up to 300 Mbps
802.11ac	Up to 867 Mbps
Feature	Interface	USB	USB2.0
USIM	Single, 3FF
MicroSD	Up to 64GB
LED	Power	Power/Battery Status Indicator (2 Colors)
Network	4G/3G/2G Network Status Indicator  (3 Colors)
Signal Bar	4 bars for Network Signal Strength Indicator
Wi-Fi	Wi-Fi Status Indicator
Message	New SMS Indicator
Display (Optional)	OLED	0.96′, 128X64 Pixels
2G/3G/4G Network Status
Power Status
Connection Status
WiFi Status
New SMS Status
Button	Power	Power Switch
WPS	WPS Key
Reset	Reset Key
Memory	ROM	4Gbits
RAM	2Gbits
WebUI	System	Connection Status
Statistics
Samba (optional)
Device Management
Power Mangement
Andoid/iOS App Management
Mobile Service	SMS Manager
Automatic APN matching according to USIM
Auto Data Connection
USSD Service
PIN/PUK Management
Network Mode Selection(2G/3G/LTE/Auto)
Router	USB RNDIS Device
Up to 10 Wi-Fi users/devices
DHCP Server
IPv4/v6
VPN Passthrough
Firewall
WPS
Security via WEP, WPA-PSK, WPA2-PSK
Wi-Fi Settings
Battery	Type	Li-ion Polymer Battery
Capacity	3000mAh
Endurance	5-6 hours (normal network situation)
Operation System	Windows	Win7/8/10
MAC OS	10.9+
Linux	Ubuntu 15.04+
Browser	IE9+, Firefox, Google Chrome, Safari, Opera
Environment	Power Supply		USB, 5V1A
Working Temperature		0°C to 35°C
Storage Temperature		-20°C to 60°C
Certification	3GPP Compliance		CE/FCC/GCF, upon customer’s requirement
Meterial		RoHS
