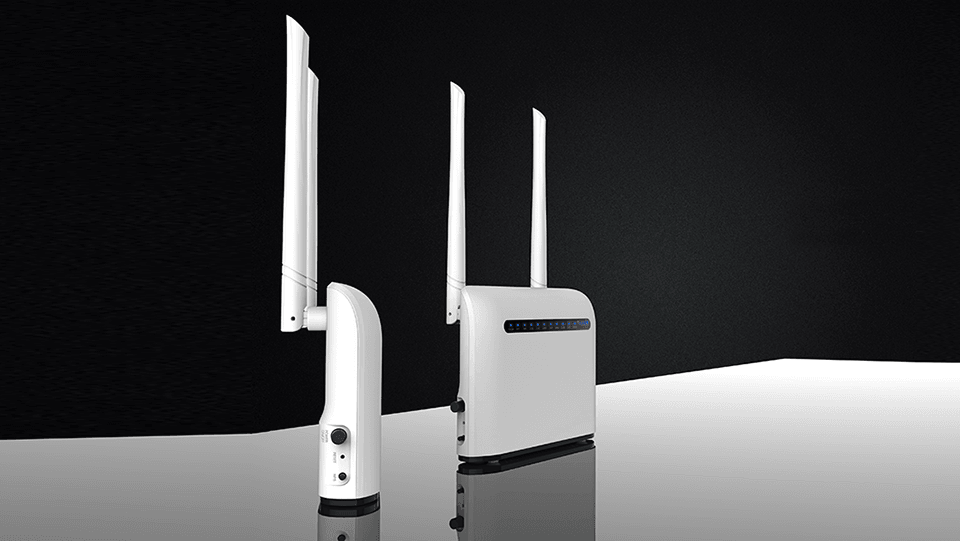

AceTel R810 4G LTE Cat6 CPE Router with Voice
Key Performance Highlights
- LTE-Advanced Cat 6 with Carrier Aggregation delivering up to 300 Mbps DL
- Powered by Qualcomm MDM9x40 cellular platform
- Dual-Band Wi-Fi 5 (802.11ac) AC1200 (300 Mbps on 2.4 GHz + 867 Mbps on 5 GHz)
- 4x Full Gigabit RJ45 ports (1x WAN + 3x LAN or 4x LAN)
- Integrated RJ11 voice port supporting VoLTE and CSFB HD voice
- Dual external SMA cellular antenna connectors for fringe reception
Core Platform Specs
| Model | R810 |
|---|---|
| Category | 4G Router |
| Chipset Platform | Qualcomm MDM9x40 + Realtek Gigabit Wi-Fi Platform |
| WiFi Standard | Dual-Band WiFi 5 (802.11ac) 2x2 MIMO up to 1200 Mbps |
At a Glance
R810 Technical Overview
- Target Applications
- Enterprise branch offices, SMBs, premium residential FWA broadband, retail chain stores, and voice-data bundled operator plans.
- Cellular Platform & Speed
- Qualcomm MDM9x40 Cat 6 platform, delivering up to 300 Mbps Downlink and 50 Mbps Uplink via 2-Carrier Aggregation (2CC CA).
- Wi-Fi Standard & Capacity
- Dual-Band Wi-Fi 5 (802.11ac) 2x2 MIMO delivering combined speeds up to 1200 Mbps (300 Mbps on 2.4 GHz + 867 Mbps on 5 GHz), supporting up to 64 concurrent users.
- Wired Interfaces
- 4x Full Gigabit RJ45 ports (1x WAN/LAN configurable + 3x LAN) for high-speed local NAS, POS, and PC networking.
- Voice Capabilities
- 1x RJ11 telephone interface supporting VoLTE, VoIP (SIP), and CSFB HD voice with concurrent high-speed data operation.
- Antenna System
- Internal high-gain cellular and dual-band Wi-Fi antennas, plus dual external SMA female connectors for optional high-gain cellular paddle antennas.
- Failover & Redundancy
- Dual-WAN support (Ethernet WAN + Cellular LTE) with automated health-check failover to ensure zero downtime for critical business links.
- Management & Provisioning
- Standard TR-069 ACS integration, SNMP v1/v2/v3, user-friendly Web GUI, and automated FOTA remote updates.
Engineering Highlights
Key Features
High-Performance Cat6 Cellular Gateway for Enterprise & Home
The AceTel R810 is a carrier-grade indoor LTE-Advanced CPE router tailored for demanding residential users and commercial enterprises. Powered by Qualcomm’s MDM9x40 baseband processor with 2-carrier aggregation (2CC CA), the R810 bonds separate cellular carrier channels to deliver up to 300 Mbps download speeds—double the capacity of standard Cat 4 routers.
Combined with 4 full Gigabit Ethernet ports and AC1200 Dual-Band Wi-Fi 5, the R810 delivers high-bandwidth, low-latency connectivity across laptops, smart TVs, cash registers, and IP cameras simultaneously.
Complete Dual-WAN Business Continuity & HD Voice
For retail and enterprise branch deployments, the R810 offers wired WAN failover: connect an existing fiber or cable modem to the Gigabit WAN port, and the R810 will instantly fail over to 4G LTE Cat 6 if the primary line goes down. The integrated RJ11 telephone port provides crystal-clear VoLTE calling, delivering a comprehensive all-in-one connectivity hub without requiring separate voice adapters.
Datasheet
Technical Specifications
| Specification | Details |
|---|---|
| Model Code | AceTel R810 |
| Device Form Factor | Desktop LTE-Advanced Cat 6 CPE Router |
| Baseband Chipset | Qualcomm MDM9x40 Platform |
| Wi-Fi Architecture | Realtek RTL8197 + RTL8812 + RTL8367 Gigabit Wi-Fi Platform |
| Cellular Standard | 3GPP Release 10/11, LTE Category 6 (2CC CA) |
| Peak Throughput | Downlink up to 300 Mbps; Uplink up to 50 Mbps |
| Carrier Aggregation | B1+B3, B1+B7, B1+B8, B1+B20, B3+B7, B3+B8, B3+B20, B7+B20, B38+B38, B40+B40 |
| Frequency Bands | LTE FDD: B1/B3/B7/B8/B20/B28; LTE TDD: B38/B40/B41; WCDMA: B1/B8; GSM: 900/1800 MHz |
| Wi-Fi Protocol | Dual-Band 802.11a/b/g/n/ac (2.4 GHz + 5 GHz), 2x2 MIMO |
| Wi-Fi Speed | 300 Mbps (2.4 GHz) + 867 Mbps (5 GHz) = AC1200 |
| Concurrent Users | Up to 64 connected wireless clients |
| Voice Port | 1x RJ11 FXS Port (VoLTE and CSFB HD voice) |
| Ethernet Ports | 4x 10/100/1000 Mbps Gigabit RJ45 (1x WAN + 3x LAN) |
| External Antenna Ports | 2x SMA Female Connectors for cellular main and diversity antennas |
| SIM Interface | 1x Standard 2FF SIM card slot |
| Power Supply | DC 12V / 1.5A external adapter |
| Network Features | Dual-WAN Failover, DHCP Server, NAT/NAPT, DMZ, DDNS, Port Forwarding |
| VPN Support | IPsec, PPTP, L2TP VPN Client & Pass-through |
| Management | TR-069, TR-181, SNMP, Web GUI, FOTA Remote Upgrade |
| Compliance | CE, FCC, RoHS compliant |
Deployment Scenarios
Applications & Use Cases
Enterprise Branch SD-WAN & Failover
Providing redundant cellular backup for corporate offices, bank branches, and retail storefronts.
Premium Residential Broadband
Replacing legacy DSL connections with 300 Mbps LTE-A wireless internet and telephone service.
Temporary Commercial Venues
Rapidly deploying gigabit Wi-Fi and wired Ethernet at trade shows, pop-up stores, and event spaces.
Smart Logistics & Warehousing
Providing wireless backhaul for barcode scanners, automated dispatch tablets, and IP security cameras.
FAQ
Frequently Asked Questions
Frequently asked questions about technical specifications, carrier compliance, customization, and ordering for R810.
What are the advantages of LTE Cat 6 Carrier Aggregation on the R810?
LTE Cat 6 Carrier Aggregation (2CC CA) allows the R810 to bond two separate LTE spectrum bands together, doubling the peak download bandwidth up to 300 Mbps and maintaining stable, low-latency performance during peak network congestion.
Does the R810 support full Gigabit wired connectivity?
Yes, the R810 is equipped with 4x 10/100/1000 Mbps Gigabit Ethernet ports. The primary port can be configured as a WAN port for wireline fiber/cable backup with automatic failover to cellular LTE.
How does the RJ11 port handle voice calling?
The onboard RJ11 port supports high-definition Voice over LTE (VoLTE) and Circuit Switched Fallback (CSFB), enabling users to make and receive crystal-clear phone calls without interrupting active internet sessions.
Can telecom operators manage the R810 remotely?
Yes, the device fully integrates standard TR-069, TR-181, SNMP, and FOTA remote firmware upgrade protocols, making large-scale deployment and automated provisioning seamless for operators.
