4G Router Platform

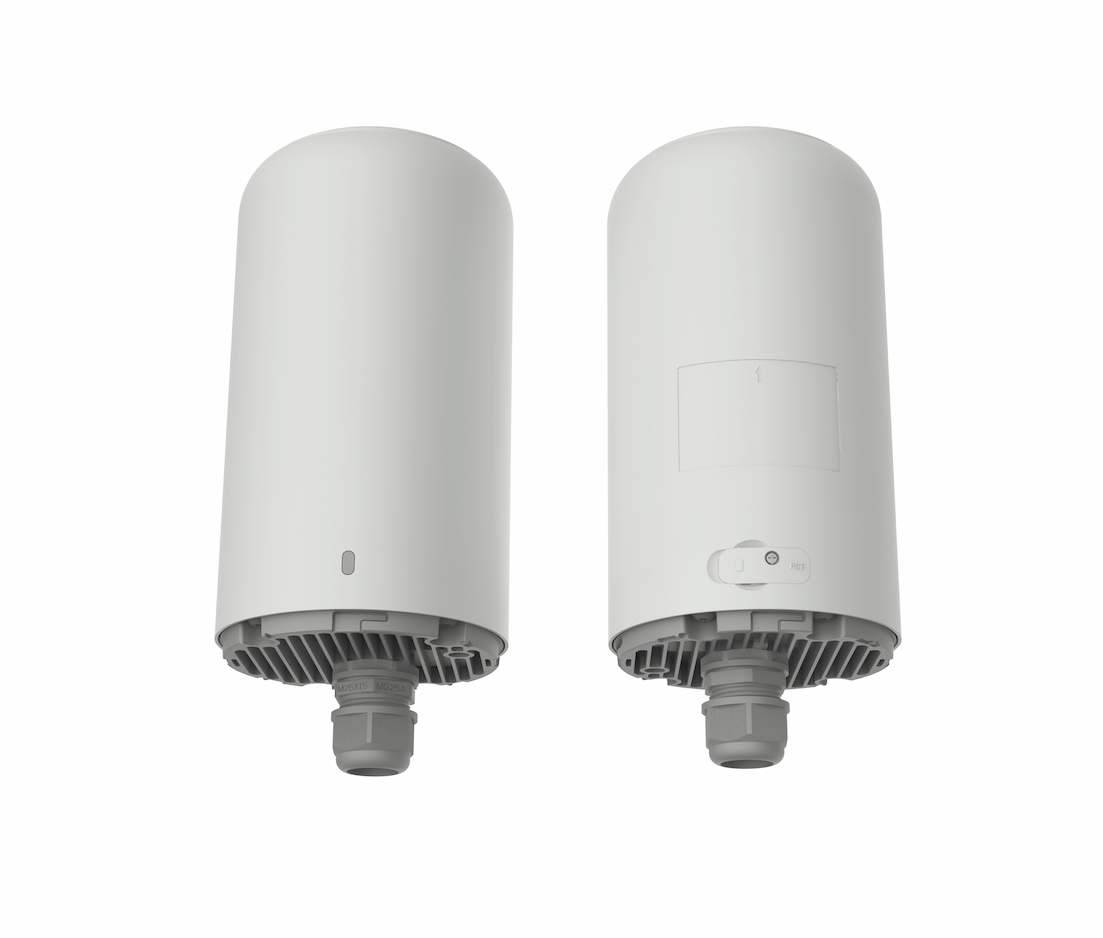

AceTel R867 4G LTE Outdoor CPE (Cat6/Cat12/Cat16)
Key Performance Highlights
- High Performance
- Quick DIY
- Multiple scenarios application
- Cost-effective
- Signal indicator for installation
Core Platform Specs
| Model | R867 |
|---|---|
| Category | 4G Router |
| Chipset Platform | Qualcomm MDM9x50 / X12 LTE modem |
| WiFi Standard | N/A (outdoor ODU, no integrated WiFi) |
4G CAT6 / CAT12 / Cat16 LTE Outdoor CPE ODU
- High Performance
- Quick DIY
- Multiple scenarios application
- Cost-effective
- Signal indicator for installation
LTE Outdoor CPE ODU work with indoor Router****for Household Scenes
LTE ODU and IDU for Household Scenes
| Item | Specification | |
| LTE | 3GPP Protocol | Release 12 (DL 256QAM、UL 64QAM、DL CAT16、UL CAT13) |
| Band* | FDD: B1/3/7/20/28 TDD: B32/38/B40/B41/B42/B43 | |
| MIMO | 1T4R@B1/B3/B7/B38/B40/B41/B42/B43 1T2R @B20/B28/B32 | |
| CA | DL 3CC CA and UL intra-band contiguous 2CC CA | |
| DL/UL Modulation | DL 256QAM UL 64QAM | |
| CAT Capacity | LTE DL CAT 16, CAT12, CAT6 | |
| LTE Transmission Mode | FDD：TM2, TM3, TM4 TDD：TM2, TM3, TM4，TM7, TM8, TM9 | |
| Antenna | Gain | 700MHz |
| ODU | Chip | Qualcomm MDM9X50 or X12 LTE Modem |
| Dimensions (H x W x D) | 114 mm x 180 mm x 42 mm | |
| Weight | <0.8 kg | |
| Interface | 1 x GE Ethernet port (RJ45) 1 x SIM card slot (for the 4FF nano-SIM card only) | |
| Power | AC: 100V~240V, 50Hz/60Hz DC: 19V/1.26A | |
| Dust & waterproof | IP65 | |
| WAN Mode | IP pass-through mode Gateway mode Routing mode | |
| Temperature | -40~55°C |
B2B Direct Sales & OEM/ODM
Request a Quote for AceTel R867 4G LTE Outdoor CPE (Cat6/Cat12/Cat16)
Tell us your target quantity, destination market and customization needs. Our sales engineers reply within 24 hours with pricing, MOQ options and lead time.Target Model: R867
MOQ-Friendly Pilot RunsSamples in 3-5 Working DaysFull OEM/ODM Firmware & IDDirect FAE Engineering
