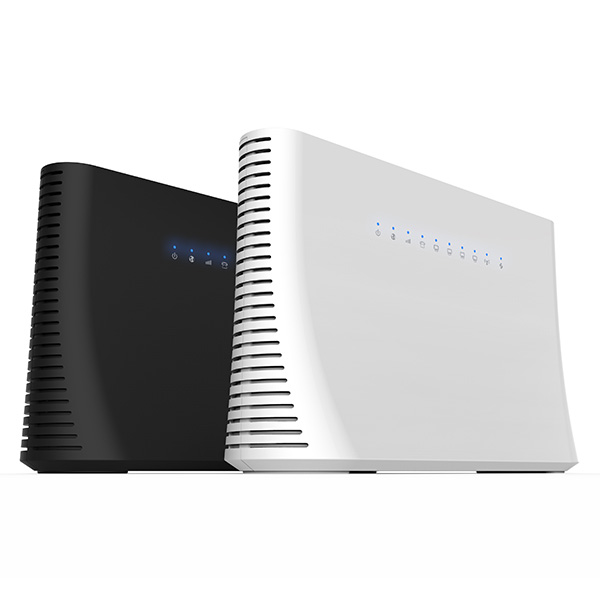

AceTel R868 4G LTE Cat6 CPE Router

Main features

• 4G LTE Cat6. Maximum 300Mbps Uplink and 50Mbps Downlink. Up to LTE Cat.12
• Dual-Band WIFI, 2.4GHz+5GHz DBDC, Wireless Data rate up to 1200Mbps
• WIFI 802.11b/g/n/ac
• 4 Gigabyte RJ45 ports, 1WAN+3LAN or 4LAN
• 1 RJ11 port for VoIP/VoLTE
• FOTA and TR069
• Automatic handover to wired network

Technical Specifications

Basical Information	Model Name	R868
Form Factor	Desktop CPE
Communication  System	Technical Standard	Compatible with   WCDMA, FDD-LTE, WCDMA,GSM 802.11 b/g/n/ac DBDC
Frequency（Customizable）	SKU 1: LTE FDD B1/B3/B5/B7/B8/B20/B28/B32 LTE TDD B38/B40/B41 2xCA B1+B1/B5/B8/B20/B28; B3+B3/B5/B7/B8/B20/B28; B7+B5/B7/B8/B20/B28; B38+B38; B40+B40; B41+B41 WCDMA B1/B3/B5/B8 SKU2: LTE FDD B2/B4/B5/B7/B12/B13/B25/B26/B29/B30/B66 2xCA B2+B2/B5/B12/B13/B29; B4+B4/B5/B12/B13/B29; B7+B5/B7/B12/B26; B25+B5/B12/B25/B26; B30+B5/B12/B29; B66+B5/B12/B13/B29/B66 WCDMA B2/B4/B5
WIFI	2.4&5 GHz, WIFI 2*2 MIMO，802.11 b/g/n/ac DBDC
Performance	Maximum Data Throughput	LTE CAT6 FDD-LTE 300Mbps/50Mbps
Hardware	Receive Diversity	Support Receive Diversity
MIMO	Support LTE DL 4×4 MIMO
BB Chipset	Qualcomm MDM9x40
AP+WIFI Chipset	MT7621A+MT7603E+MT7612EN
Memory	Modem:512MB+256MB AP:256MB+16MB
power consumption	<12W
Power Voltage	DC12V/1.5A
USIM/SIM	2FF SIM card support SIM/USIM/UIM,standard 6 PIN SIM card interface, support 3V SIM card and 1.8V SIM card;internal push-push SIM slot
LED	Power Indication LED（SYS）,WAN Signal Strength(RF), WiFi/WPS Indication LED(WIFI), WAN/LAN Status LED(ETH),Internet Status LED(NET),
Antenna	4 x LTE 4×4 MIMO 2 x WIFI (2.4GHz + 5GHz) 2*2 MIMO
Buttons	POWER, Reset,WPS Power: CPE should send the  information to network when the CPE is Powered off.
Slic	SI32185
Ethernet	1WAN+3LAN, 10BaseT/100Base/1000Base automatic adaptive port
RJ11	RJ11x1
Reset	Pinhole
ESD	ESD Protection circuit; Contact±8KV, Air±10KV
Software	SW Update	TR069 & Local Update
WIFI Mode	AP Only
WIFI Security	OPEN & WPA-PSK& WPA2-PSK & WPA-PSK/WPA2-PSK;
SMS	Support
Voice	VoLTE & CS voice & VOIP
AGPS	Not Support
IPv4	Support IPv4
IPv6	Support IPv6
Firewall	Mac/IP address filter, Port forwarding, WiFi Black/Whilte list ALG: SIP(must)/RSTP(optional) FTP(optional)
Data Statistics	Support
VPN Pass Through	PPTP/L2TP/IPSec
SIM Lock	Support
TR069	Suppor
Fota	Support;
SNTP	Support
DOS ATTACK	Support
DMZ	Support
HTTP	Support
HTTPS	Support
Certification	Certification	Depends on customization, cost related
Environment	Operating Temperature	Normal:0°C to +45°C;
Storage Temperature	-20° C  to +70° C
Humidity	5%~ 95%
