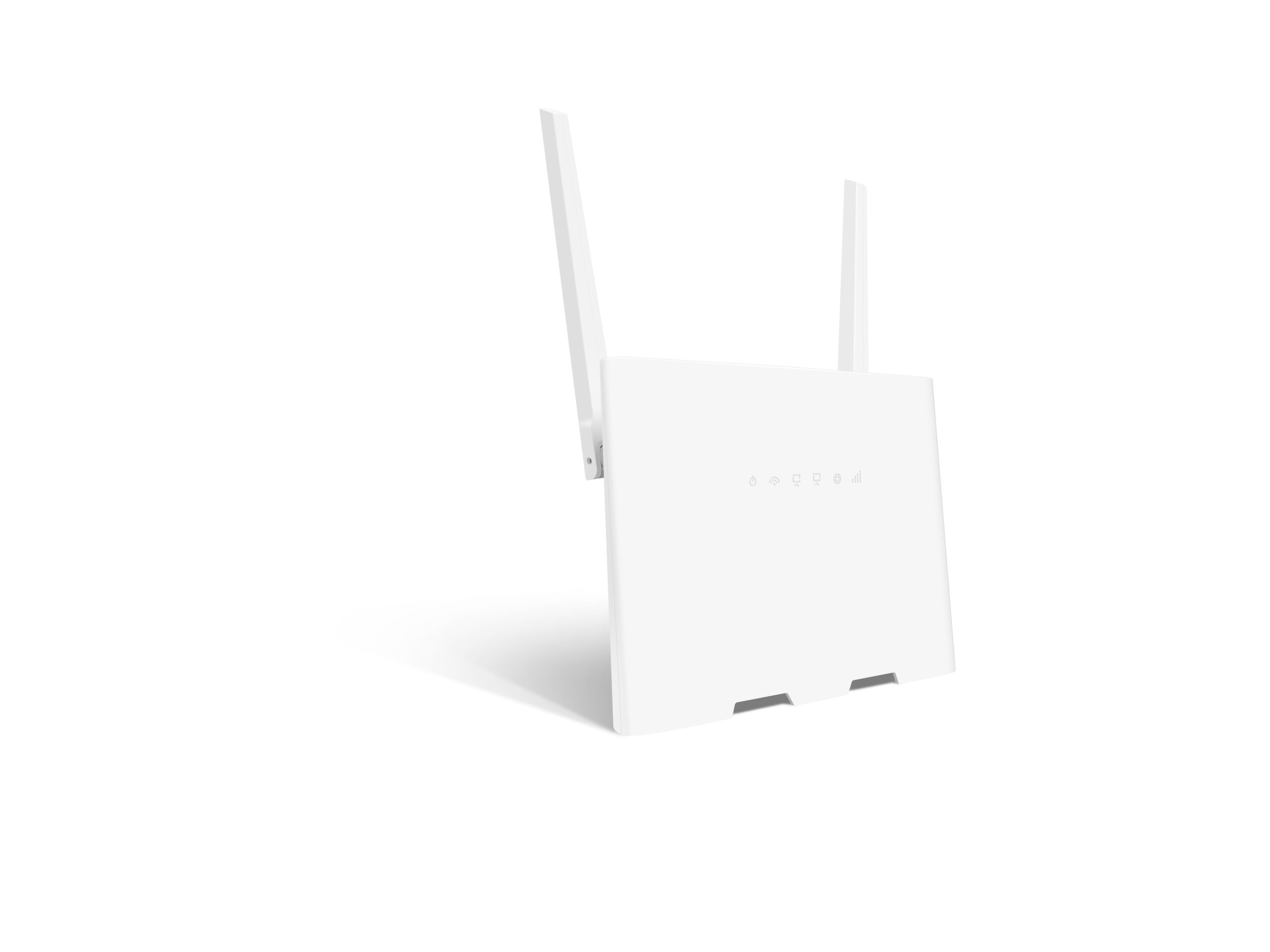

AceTel R1260S 4G LTE Cat6 CPE Router

Cost-effective LTE Cat.6 4G router

• 4G LTE Cat6. Maximum 300Mbps Uplink and 50Mbps Downlink.
• Dual-Band WIFI, 2.4GHz+5GHz DBDC, Wireless Data rate up to 1200Mbps
• 11b/g/b/ac
• 4 Gigabit RJ45 ports, 1WAN+3LAN
• 1 RJ11 for Voice (Optional)
• Built-in battery (Optional)
• FOTA and TR069
• Automatic handover to wired network

Technical Specifications

Basical Information	Model Name	R1260S
Form Factor	Desktop CPE
Communication  System	Technical Standard	Compatible with WCDMA, FDD-LTE, WCDMA,GSM 802.11 b/g/n/ac DBDC
Frequency（Customizable）	SKU1: LTE-FDD: B1/3/5/7/8/20/28, LTE-TDD B38/40/41, WCDMA: B1/B5/B8 SKU2: LTE-FDD: B2/3/4/5/7/8/12/28/66, LTE-TDD: B38/40/41, WCDMA: B2/B5/B8 Support LTE-A carrier aggregation
WIFI	2.4&5 GHz, WIFI 2*2 MIMO，802.11 b/g/n/ac DBDC
Performance	Maximum Data Throughput	LTE CAT6 FDD-LTE 300Mbps/50Mbps
Hardware	Receive Diversity	Support Receive Diversity
Memory	Modem:512MB+256MB AP:256MB+16MB
power consumption	<12W
Power Voltage	DC12V/1A
USIM/SIM	2FF SIM card support SIM/USIM/UIM,standard 6 PIN SIM card interface, support 3V SIM card and 1.8V SIM card;internal push-push SIM slot
LED	Power Indication LED（SYS）, WAN Signal Strength (RF), WiFi/WPS Indication LED(WIFI), WAN/LAN Status LED(ETH), Internet Status LED(NET),
Antenna	2 x LTE 2×2 MiMo 2 x WIFI (2.4GHz + 5GHz)  2*2 MIMO
Buttons	POWER, Reset, WPS Power: CPE should send the  information to network when the CPE is Powered off.
Ethernet	1WAN+3LAN, 10BaseT/100Base/1000Base automatic adaptive port
Voice	1* RJ11 Port, VOLTE/CSFB, Optional
Reset	Pinhole
ESD	ESD Protection circuit; Contact±8KV, Air±10KV
SW Update	TR069 & Local Update
Software	WIFI Mode	AP Only
WIFI Security	OPEN & WPA-PSK& WPA2-PSK & WPA-PSK/WPA2-PSK;
SMS	Support
Voice	VoLTE & CS voice Optional
AGPS	Not Support
IPv4	Support IPv4
IPv6	Support IPv6
Firewall	Mac/IP address filter, Port forwarding, WiFi Black/Whilte list ALG: SIP(must)/RSTP(optional) FTP(optional)
Data Statistics	Support
VPN Pass Through	PPTP/L2TP/IPSec
SIM Lock	Support
TR069	Support
Fota	Support;
SNTP	Support
DOS ATTACK	Support
DMZ	Support
HTTP	Support
HTTPS	Support
Certification	Depends on customization, cost related
Certification	Operating Temperature	Normal:0°C to +45°C;
Environment	Storage Temperature	-20° C  to +70° C
Humidity	5%~ 95%
