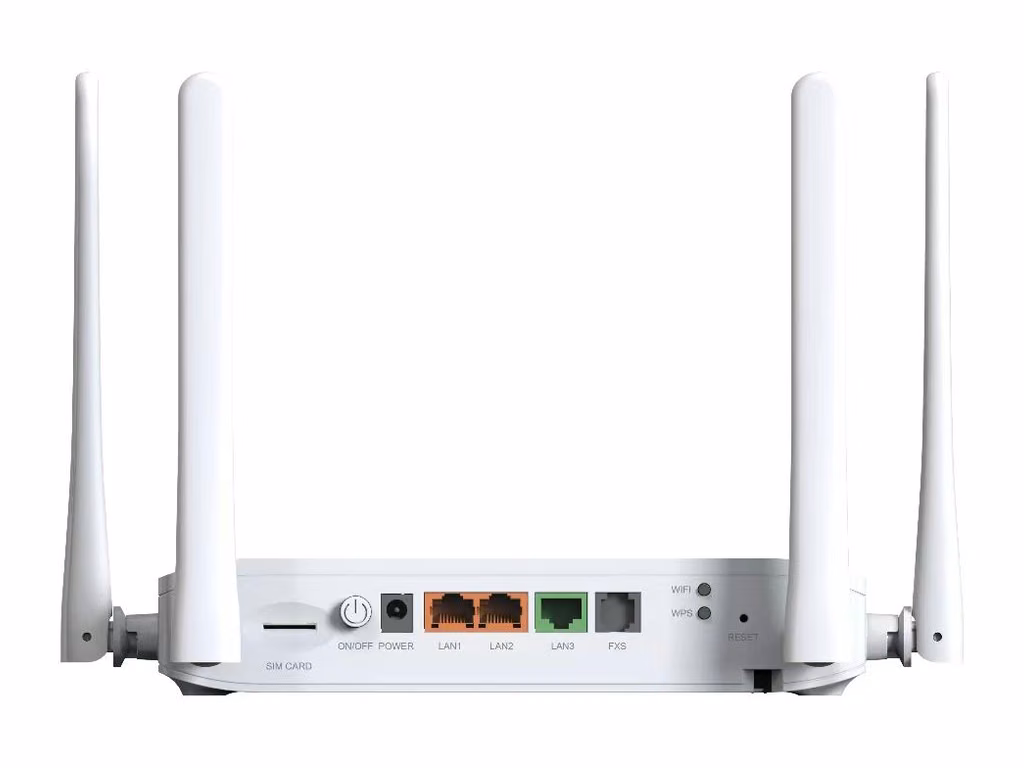

AceTel TG900L AC1200 Wi-Fi GPON ONT with 4G LTE Cat6
Key Performance Highlights
- GPON ONT/ONU with SC/APC port: 2.5 Gbps downstream, 1.25 Gbps upstream, up to 20 km (ITU-T G.984.1-G.984.4)
- Built-in 4G LTE Cat6 with SIM slot as a second connection path alongside fiber
- AC1200 dual-band Wi-Fi: up to 300 Mbps on 2.4 GHz and 900 Mbps on 5 GHz, 4x 5dBi external antennas
- 2x 100/1000 Mbps LAN, 1x 100/1000 Mbps WAN and 1x FXS port with SIP voice
- OMCI remote management, VLAN modes (802.1Q tag, transparent, translation, trunk), IPv4 and IPv6
- Easy Setup Assistant for quick installation, CE and RoHS compliant
Core Platform Specs
| Model | TG900L |
|---|---|
| Category | GPON ONU |
| Chipset Platform | GPON ONT platform with integrated LTE Cat 6 modem (chipset details on request) |
| WiFi Standard | Dual-Band Wi-Fi 5 (802.11ac) AC1200: 300 Mbps (2.4 GHz) + 900 Mbps (5 GHz) |
At a Glance
TG900L Technical Overview
- Target Applications
- FTTH subscriber premises for ISPs and telecom operators, cost-sensitive fiber rollouts that also need a mobile connection, and homes or small offices with analog phones.
- Optical Interface
- GPON ONT (also called GPON ONU) with 1x SC/APC port, ITU-T G.984.1 to G.984.4, 2.5 Gbps downstream and 1.25 Gbps upstream, up to 20 km reach.
- Cellular Platform
- LTE Cat6 with SIM card slot; LTE-FDD B1/B3/B5/B7/B8/B20/B28, LTE-TDD B38/B40/B41, 2xCA, WCDMA B1/B5/B8.
- Wi-Fi Platform
- IEEE 802.11b/g/n/ac on 2.4 GHz (up to 300 Mbps) and 5 GHz (up to 900 Mbps), 4x 5dBi fixed external antennas.
- Core Interfaces
- 2x 100/1000 Mbps LAN, 1x 100/1000 Mbps WAN, 1x FXS (SIP voice), 1x SIM slot, power button, WPS/Wi-Fi button, reset button.
- Software & Remote Management
- OMCI remote management, Web setup assistant, WAN types Dynamic IP / Static IP / PPPoE, VLAN modes, QoS, firewall, IPv4 and IPv6.
- Build Specifications
- 210 x 130 x 40 mm desktop housing, DC 12V 1.5A, 0 to 40°C operating temperature, CE and RoHS.
- OEM/ODM Customization Scope
- Logo and packaging, firmware defaults and branding, LTE band and WAN-policy options on request.
Engineering Highlights
Key Features
A Cost-Optimized GPON Ont with 4G LTE
The TG900L is the AC1200 version of AceTel’s GPON plus LTE line. It keeps the parts that matter for an operator rollout: a standards-based GPON port, an LTE Cat6 modem with a SIM slot, an FXS voice port and OMCI management. It uses a dual-band Wi-Fi 5 radio (300 Mbps on 2.4 GHz and 900 Mbps on 5 GHz) instead of Wi-Fi 6, which fits subscriber plans where the broadband tier does not need AX3000 speeds.
The LTE modem is a second connection path next to the fiber link. The active path and switching behavior are set by firmware policy, so agree the WAN behavior you need when you evaluate a sample. The LTE band list (FDD B1/B3/B5/B7/B8/B20/B28, TDD B38/B40/B41) targets Europe, Asia, Africa and the Middle East. It does not include North American LTE bands such as B2, B4, B12, B13 or B66, so operators in that region should discuss a band variant before ordering.
LAN, WAN and Voice Ports with Full Vlan Support
Two 100/1000 Mbps LAN ports and one 100/1000 Mbps WAN port cover a typical home or small office, and the single RJ-11 FXS port carries analog voice over SIP with G.729, G.722, G.711a and G.711 codecs. For triple-play deployments the software supports 802.1Q tag VLAN as well as transparent, translation and trunk modes, so voice, IPTV and internet traffic can be separated on the subscriber side. Firewall features include SPI and DoS protection, IP, MAC and domain filtering, and IP/MAC binding.
Choosing Between the TG900L, TG960L and TG6241C
| Criterion | TG900L | TG960L | TG6241C |
|---|---|---|---|
| Optical | GPON, SC/APC | GPON, SC/APC | GPON, Class B+ / C+ |
| Wi-Fi | AC1200 (Wi-Fi 5): 300 Mbps + 900 Mbps | AX3000 (Wi-Fi 6), EasyMesh | AX3000 (Wi-Fi 6) |
| 4G LTE | Cat6, SIM slot | Cat6, SIM slot | None |
| Ethernet | 2x LAN + 1x WAN | 2x LAN + 1x WAN | 4x Gigabit LAN |
| Voice | 1x FXS | 1x FXS | 1x FXS |
| Best fit | Fiber + LTE, cost-optimized Wi-Fi | Fiber + LTE with Wi-Fi 6 | Fiber-only Wi-Fi 6 with 4 LAN ports |
Details: TG960L GPON ONT with 4G LTE · TG6241C GPON ONU.
Datasheet
Technical Specifications
| Specification | Details |
|---|---|
| General | |
| Model | AceTel TG900L |
| Product Type | AC1200 dual-band Wi-Fi GPON ONT with 4G LTE Cat6 |
| GPON Standards | ITU-T G.984.1, G.984.2, G.984.3, G.984.4 |
| Distance | 20 km max |
| Data Rates | Upstream 1.25 Gbps, downstream 2.5 Gbps |
| Wireless Standards | IEEE 802.11b/g/n/ac |
| Dual Rate | 2.4 GHz up to 300 Mbps; 5 GHz up to 900 Mbps |
| Operation Frequency | 2.4 GHz and 5 GHz |
| Wireless Security | WEP, WPA / WPA2, WPA-PSK / WPA2-PSK |
| VoIP Standards | SIP (RFC 3261); ITU-T G.729 / G.722 / G.711a / G.711 |
| Hardware | |
| Interfaces | 1x SC/APC GPON port, 2x 100/1000 Mbps LAN, 1x 100/1000 Mbps WAN, 1x FXS, 1x SIM card slot |
| Buttons | Power ON/OFF, WPS/Wi-Fi, Reset |
| Power Supply | DC 12V / 1.5A |
| Antenna | 4x 5dBi fixed external antennas |
| Dimensions (W x D x H) | 210 mm x 130 mm x 40 mm |
| ONU Software Features | |
| WAN Type | Dynamic IP / Static IP / PPPoE |
| DHCP | Server, client, client list, address reservation |
| Quality of Service | WMM, bandwidth control |
| Port Forwarding | Virtual server, port triggering, UPnP, DMZ |
| VLAN | 802.1Q tag VLAN; transparent, translation and trunk modes |
| Access Control | Parental control, local management control, host list, access schedule, rule management |
| Firewall Security | DoS, SPI firewall; IP, MAC and domain filter; IP and MAC address binding |
| VoIP Features | 1x RJ-11 FXS port for analog telephone; call forwarding, call waiting, call block, 3-way conference call, etc. |
| Management | Access control, local management, remote management (OMCI) |
| Internet Protocol | IPv4, IPv6 |
| LTE Features | |
| LTE Category | LTE Cat6 (3GPP Rel-10) |
| LTE-FDD | B1 / B3 / B5 / B7 / B8 / B20 / B28 |
| LTE-TDD | B38 / B40 / B41 |
| 2xCA | B1+B1/B3/B5/B7/B8/B20/B28; B3+B3/B5/B7/B8/B20/B28; B7+B5/B7/B8/B20/B28; B38+B38; B40+B40; B41+B41 |
| CA Combinations | CA_1A-3A, CA_3A-28A, CA_40C, CA_41C |
| WCDMA | B1 / B5 / B8 |
| Antenna Connection | External antenna ports; MIMO supported |
| Environment | |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Relative Humidity | 10% to 90%, non-condensing |
| Storage Humidity | 5% to 95%, non-condensing |
| Certifications | CE, RoHS |
| Package Contents | 1x GPON router, 1x quick installation guide, 1x power adapter, 1x Ethernet cable |
Deployment Scenarios
Applications & Use Cases
Volume FTTH Rollouts
A lower-cost GPON gateway with Wi-Fi, analog voice and IPTV connection for mass subscriber deployment, managed over OMCI.
Fiber Plus Mobile Connection
Areas where fiber is still being built out and a second LTE connection on the same device is useful.
Small Offices With Analog Phones
FXS voice with SIP, two LAN ports and a WAN port, with VLAN modes for separating voice, IPTV and data.
Operator-Branded Home Gateways
Private-label ONT with your logo, packaging and default firmware settings.
Related Guides & Products
- Wi-Fi 6 Version: AceTel TG960L AX3000 Wi-Fi 6 GPON ONT with 4G LTE Cat6
- Fiber-Only Alternative: AceTel TG6241C WiFi 6 AX3000 GPON ONU
- Private Label Program: White Label Manufacturing Program
FAQ
Frequently Asked Questions
Frequently asked questions about technical specifications, carrier compliance, customization, and ordering for TG900L.
Does the TG900L have a built-in 4G LTE modem?
Yes. The TG900L combines a GPON ONT with an LTE Cat6 modem and a SIM card slot. LTE-FDD bands are B1/B3/B5/B7/B8/B20/B28, LTE-TDD bands are B38/B40/B41, with 2xCA combinations and WCDMA fallback on B1/B5/B8. Check your operator's bands against this list before ordering.
How does the LTE connection work together with the GPON fiber link?
The datasheet describes LTE Cat6 as a second connection alongside GPON. How the two WAN paths are prioritized depends on the firmware version. Tell us the behavior you need and we will confirm it on the current firmware or quote a customization.
What is the difference between the TG900L and the TG960L?
Both are GPON ONTs with LTE Cat6 in the same 210 x 130 x 40 mm housing. Both have the same ports: 2x LAN, 1x WAN and 1x FXS. The TG900L uses AC1200 Wi-Fi 5 (300 Mbps on 2.4 GHz, 900 Mbps on 5 GHz), while the TG960L adds AX3000 Wi-Fi 6 and EasyMesh. Choose the TG900L when cost matters more than peak Wi-Fi speed.
Is the TG900L compatible with my OLT?
The TG900L follows ITU-T G.984.1 to G.984.4 with an SC/APC optical port and OMCI management, with a reach of up to 20 km. Interoperability is confirmed per OLT, so we recommend testing a sample against your OLT and provisioning profile before volume orders.
Can AceTel supply the TG900L with our own branding?
Yes. AceTel supports OEM/ODM customization including logo printing, packaging and firmware defaults. The TG900L carries CE and RoHS compliance, and additional approvals can be discussed for your target market. Contact us for details.
