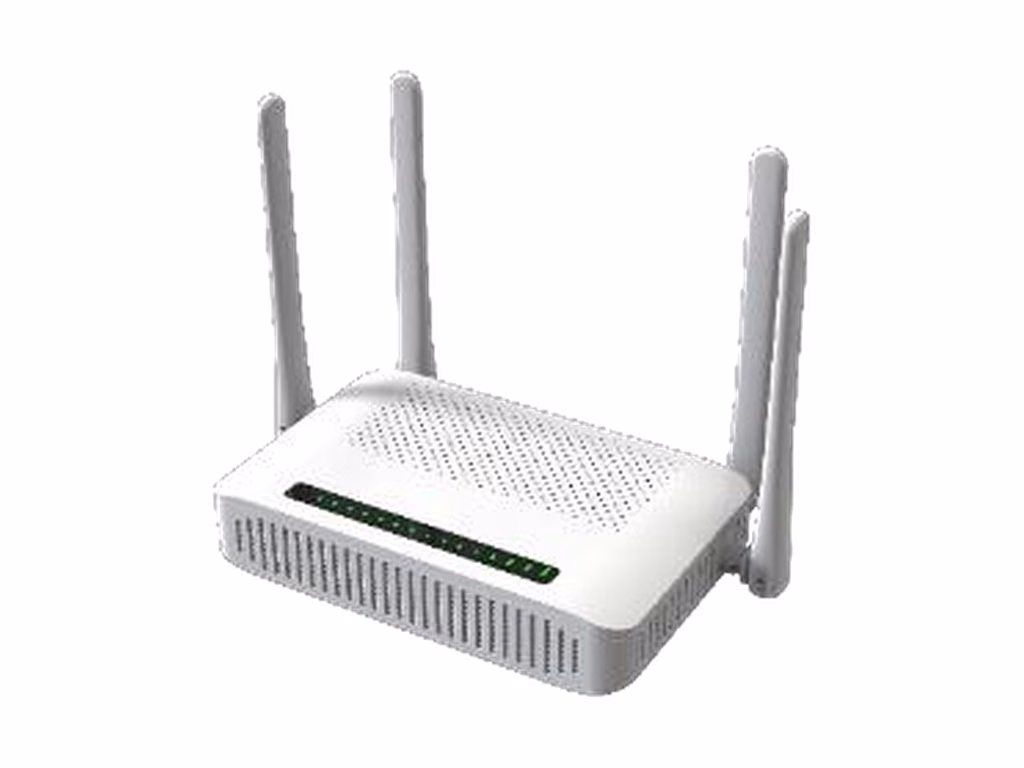

AceTel TG960L AX3000 Wi-Fi 6 GPON ONT with 4G LTE Cat6
Key Performance Highlights
- GPON ONT/ONU with SC/APC port: 2.5 Gbps downstream, 1.25 Gbps upstream, up to 20 km (ITU-T G.984.1-G.984.4)
- Built-in 4G LTE Cat6 with SIM slot as a second connection path alongside fiber
- AX3000 dual-band Wi-Fi 6 (802.11ax) up to 3000 Mbps with 4x 5dBi external antennas
- EasyMesh support for whole-home Wi-Fi coverage
- 2x 100/1000 Mbps LAN, 1x 100/1000 Mbps WAN and 1x FXS port with SIP voice
- OMCI remote management, VLAN modes (802.1Q tag, transparent, translation, trunk), IPv4 and IPv6
Core Platform Specs
| Model | TG960L |
|---|---|
| Category | GPON ONU |
| Chipset Platform | GPON ONT platform with integrated LTE Cat 6 modem (chipset details on request) |
| WiFi Standard | Dual-Band Wi-Fi 6 (802.11ax) AX3000, up to 3000 Mbps, EasyMesh |
At a Glance
TG960L Technical Overview
- Target Applications
- FTTH subscriber premises for ISPs and telecom operators, fiber rollouts that also need a mobile connection, small offices with analog phones, and homes that need whole-home Wi-Fi 6 coverage.
- Optical Interface
- GPON ONT (also called GPON ONU) with 1x SC/APC port, ITU-T G.984.1 to G.984.4, 2.5 Gbps downstream and 1.25 Gbps upstream, up to 20 km reach.
- Cellular Platform
- LTE Cat6 with SIM card slot; LTE-FDD B1/B3/B5/B7/B8/B20/B28, LTE-TDD B38/B40/B41, 2xCA, WCDMA B1/B5/B8.
- Wi-Fi Platform
- IEEE 802.11b/g/n/ac/ax on 2.4 GHz and 5 GHz, up to 3000 Mbps, EasyMesh, 4x 5dBi fixed external antennas.
- Core Interfaces
- 2x 100/1000 Mbps LAN, 1x 100/1000 Mbps WAN, 1x FXS (SIP voice), power button, WPS/Wi-Fi button, reset button.
- Software & Remote Management
- OMCI remote management, Web setup assistant, WAN types Dynamic IP / Static IP / PPPoE, VLAN modes, QoS, firewall, IPv4 and IPv6.
- Build Specifications
- 210 x 130 x 40 mm desktop housing, DC 12V 1.5A, 0 to 40°C operating temperature, CE and RoHS.
- OEM/ODM Customization Scope
- Logo and packaging, firmware defaults and branding, LTE band and WAN-policy options on request.
Engineering Highlights
Key Features
Why A GPON Ont with Built-in 4G LTE
Most fiber subscribers get a GPON ONU and a separate Wi-Fi router, and a mobile connection means a third box. The TG960L puts the GPON terminal, the Wi-Fi 6 router and an LTE Cat6 modem in one housing, so an operator installs and supports one device and the subscriber has one power adapter and one Wi-Fi network.
The LTE modem is a second connection path next to the fiber link. Which path is active, and when, is a firmware policy, so the exact WAN behavior is something to agree at the sample stage. The LTE band list (FDD B1/B3/B5/B7/B8/B20/B28, TDD B38/B40/B41) targets Europe, Asia, Africa and the Middle East. It does not include North American LTE bands such as B2, B4, B12, B13 or B66, so operators in that region should discuss a band variant before ordering.
Wi-Fi 6 AX3000 and EasyMesh for the Last Meter
The Wi-Fi side is AX3000 dual-band (802.11ax, up to 3000 Mbps) with four fixed 5dBi external antennas. EasyMesh support lets an operator extend coverage with additional EasyMesh nodes instead of replacing the ONT. Wireless security listed in the datasheet is WEP, WPA/WPA2 and WPA-PSK/WPA2-PSK, with SSID and access point configuration, parental control, access schedule and host list available in the Web interface.
Choosing Between the TG960L, TG900L and TG6241C
| Criterion | TG960L | TG900L | TG6241C |
|---|---|---|---|
| Optical | GPON, SC/APC | GPON, SC/APC | GPON, Class B+ / C+ |
| Wi-Fi | AX3000 (Wi-Fi 6), EasyMesh | AC1200 (Wi-Fi 5): 300 Mbps + 900 Mbps | AX3000 (Wi-Fi 6) |
| 4G LTE | Cat6, SIM slot | Cat6, SIM slot | None |
| Ethernet | 2x LAN + 1x WAN | 2x LAN + 1x WAN | 4x Gigabit LAN |
| Voice | 1x FXS | 1x FXS | 1x FXS |
| Best fit | Fiber + LTE with Wi-Fi 6 | Fiber + LTE, cost-optimized Wi-Fi | Fiber-only Wi-Fi 6 with 4 LAN ports |
Details: TG900L GPON ONT with 4G LTE · TG6241C GPON ONU.
Datasheet
Technical Specifications
| Specification | Details |
|---|---|
| General | |
| Model | AceTel TG960L |
| Product Type | AX3000 Wi-Fi GPON ONT with 4G LTE Cat6 |
| GPON Standards | ITU-T G.984.1, G.984.2, G.984.3, G.984.4 |
| Distance | 20 km max |
| Data Rates | Upstream 1.25 Gbps, downstream 2.5 Gbps |
| Wireless Standards | IEEE 802.11b/g/n/ac/ax |
| Operation Frequency | 2.4 GHz and 5 GHz |
| Wireless Security | WEP, WPA / WPA2, WPA-PSK / WPA2-PSK |
| Mesh | EasyMesh |
| VoIP Standards | SIP (RFC 3261); ITU-T G.729 / G.722 / G.711a / G.711 |
| Hardware | |
| Interfaces | 1x SC/APC GPON port, 2x 100/1000 Mbps LAN, 1x 100/1000 Mbps WAN, 1x FXS, 1x SIM card slot |
| Buttons | Power ON/OFF, WPS/Wi-Fi, Reset |
| Power Supply | DC 12V / 1.5A |
| Antenna | 4x 5dBi fixed external antennas |
| Dimensions (W x D x H) | 210 mm x 130 mm x 40 mm |
| ONU Software Features | |
| WAN Type | Dynamic IP / Static IP / PPPoE |
| DHCP | Server, client, client list, address reservation |
| Quality of Service | WMM, bandwidth control |
| Port Forwarding | Virtual server, port triggering, UPnP, DMZ |
| VLAN | 802.1Q tag VLAN; transparent, translation and trunk modes |
| Access Control | Parental control, local management control, host list, access schedule, rule management |
| Firewall Security | DoS, SPI firewall; IP, MAC and domain filter; IP and MAC address binding |
| VoIP Features | Call forwarding, call waiting, call block, 3-way conference call, etc. |
| Management | Access control, local management, remote management (OMCI) |
| Internet Protocol | IPv4, IPv6 |
| LTE Features | |
| LTE Category | LTE Cat6 (3GPP Rel-10) |
| LTE-FDD | B1 / B3 / B5 / B7 / B8 / B20 / B28 |
| LTE-TDD | B38 / B40 / B41 |
| 2xCA | B1+B1/B3/B5/B7/B8/B20/B28; B3+B3/B5/B7/B8/B20/B28; B7+B5/B7/B8/B20/B28; B38+B38; B40+B40; B41+B41 |
| CA Combinations | CA_1A-3A, CA_3A-28A, CA_40C, CA_41C |
| WCDMA | B1 / B5 / B8 |
| Antenna Connection | External antenna ports; MIMO supported |
| Environment | |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Relative Humidity | 10% to 90%, non-condensing |
| Storage Humidity | 5% to 95%, non-condensing |
| Certifications | CE, RoHS |
| Package Contents | 1x GPON router, 1x quick installation guide, 1x power adapter, 1x Ethernet cable |
Deployment Scenarios
Applications & Use Cases
FTTH Subscriber Gateways
One device for fiber, Wi-Fi 6, analog voice and IPTV at the subscriber premises, managed over OMCI.
Fiber Rollouts With a Mobile Link
Areas where fiber coverage is still being built out and a second LTE connection on the same device is useful.
Small Offices With Analog Phones
FXS voice with SIP, plus Ethernet and VLAN support for separating voice, IPTV and data.
Whole-Home Wi-Fi
AX3000 coverage with EasyMesh for operators offering extended home Wi-Fi.
Related Guides & Products
- Fiber-Only Alternative: AceTel TG6241C WiFi 6 AX3000 GPON ONU
- Fixed + Mobile Hybrid Concept: AceTel M981 4G Cat6 Hybrid VDSL2/LTE Router
- Private Label Program: White Label Manufacturing Program
FAQ
Frequently Asked Questions
Frequently asked questions about technical specifications, carrier compliance, customization, and ordering for TG960L.
Does the TG960L have a built-in 4G LTE modem?
Yes. The TG960L combines a GPON ONT with an LTE Cat6 modem and a SIM card slot. LTE-FDD bands are B1/B3/B5/B7/B8/B20/B28, LTE-TDD bands are B38/B40/B41, with 2xCA combinations and WCDMA fallback on B1/B5/B8. Check your operator's bands against this list before ordering.
How does the LTE connection work together with the GPON fiber link?
The datasheet describes LTE Cat6 as a second connection alongside GPON. How the two WAN paths are prioritized, for example fiber primary with LTE as the alternative, depends on the firmware version. Tell us the behavior you need and we will confirm it on the current firmware or quote a customization.
Is the TG960L compatible with my OLT?
The TG960L follows ITU-T G.984.1 to G.984.4 with an SC/APC optical port and OMCI management, with a reach of up to 20 km. Interoperability is confirmed per OLT, so we recommend testing a sample against your OLT and provisioning profile before volume orders.
What voice and IPTV services does it support?
The unit has one RJ-11 FXS port with SIP (RFC 3261) and G.729, G.722, G.711a and G.711 codecs, plus call forwarding, call waiting, call block and 3-way conference. The datasheet also lists IPTV connection support for FTTH triple-play service.
Can AceTel supply the TG960L with our own branding?
Yes. AceTel supports OEM/ODM customization including logo printing, packaging and firmware defaults. The TG960L carries CE and RoHS compliance, and additional approvals can be discussed for your target market. Contact us for details.
