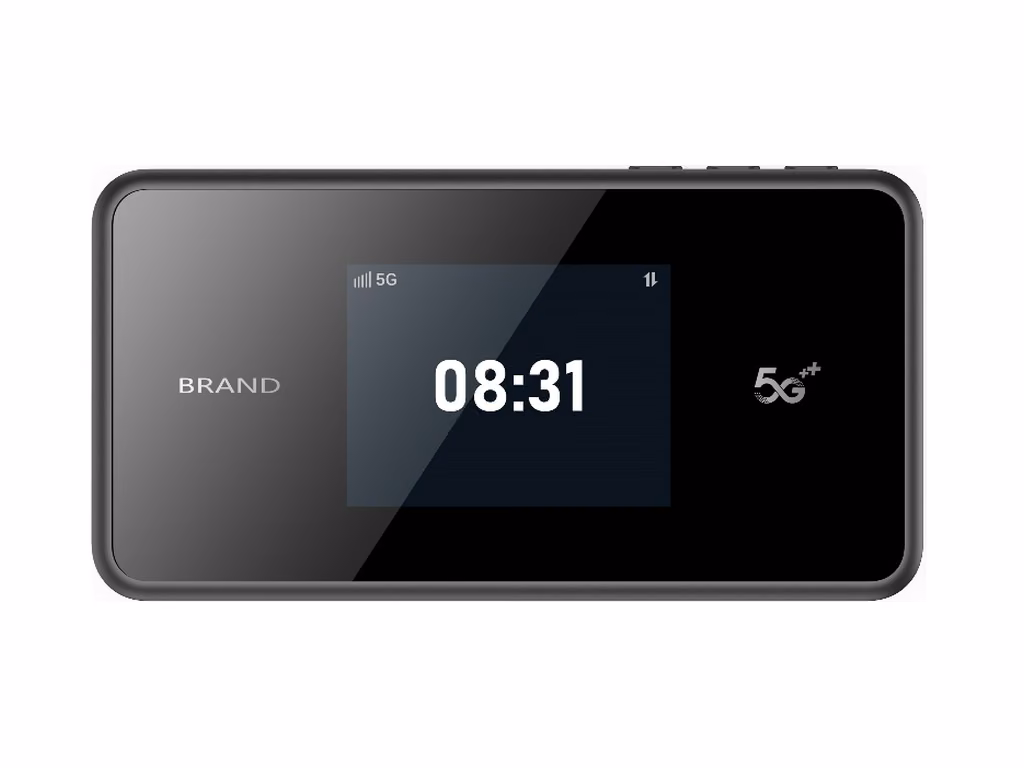

AceTel M06 5G RedCap MiFi Hotspot (Wi-Fi 6, Dual SIM + eSIM)
Key Performance Highlights
- 3GPP Release 17 5G RedCap (Reduced Capability) with SA support and 4G LTE fallback
- 5G NR peak rates of 226 Mbps DL / 120 Mbps UL on a 20 MHz FR1 channel
- Dual-band Wi-Fi 6 (802.11ax) hotspot sharing the connection with up to 10 devices
- Flexible SIM design: 2x Nano SIM slots plus 2x eSIM profiles
- 2.4-inch LCD status display with NFC, WPS and menu keys
- 3500mAh removable Li-ion battery with USB Type-C charging (max 1.5A, JEITA)
- CE, FCC, CCC, SRRC and RoHS certification support for global distribution
Core Platform Specs
| Model | M06 |
|---|---|
| Category | MiFi |
| Chipset Platform | Balong 5710 5G RedCap Modem + AIC8800D40L Wi-Fi 6 (1Gbit RAM + 1Gbit ROM) |
| WiFi Standard | Wi-Fi 6 (802.11ax) 1x1 Dual-Band, up to 286.8 Mbps |
At a Glance
M06 Technical Overview
- Target Applications
- Portable personal hotspots, operator-branded mobile broadband bundles, business travel connectivity, home and small-office backup internet, and retail MiFi programs.
- Cellular & Network Platform
- 3GPP Release 17 5G Reduced Capability (RedCap) UE supporting 5G NR SA and 4G LTE; FR1 20 MHz bandwidth, TDD and FDD; 5G bands n1/n5/n8/n28/n41/n78 (standard version; EU and North America band versions available) and LTE bands B1/B3/B5/B8/B34/B39/B40/B41.
- Peak Data Rates
- 5G NR DL 226 Mbps / UL 120 Mbps; LTE DL 150 Mbps / UL 50 Mbps.
- Wi-Fi Platform
- AIC8800D40L dual-band Wi-Fi 6 (2.4 GHz 802.11 b/g/n/ax, 5 GHz 802.11 a/n/ac/ax), 1x1 antenna, up to 286.8 Mbps, with TKIP/AES/SAE encryption and up to 10 connected devices.
- Core Interfaces
- USB Type-C (USB 2.0), 2x Nano SIM slots plus 2x eSIM, NFC, 2.4-inch LCD, and Power, Menu, WPS and Reset keys.
- Software & Remote Management
- Web UI and on-device GUI, RNDIS virtual Ethernet over USB, PIN/PUK and SMS management, local firmware update, FOTA, and backup/restore through the Web UI.
- Certifications
- CE, FCC, CCC, SRRC, China Network Access License (NAL) and RoHS; other approvals as required.
- Power & Build Specifications
- 3500mAh removable rechargeable Li-ion battery (3.8V nominal), 125 x 65 x 16.5 mm body, operating temperature 0 to 40°C.
- OEM/ODM Customization Scope
- Custom housing finish and printing, carrier logo and display theme, UI language, firmware defaults and gift box packaging.
Engineering Highlights
Key Features
5G Redcap Performance in A Pocket-Sized Hotspot
The AceTel M06 is built on a Balong 5710 modem that implements 3GPP Release 17 5G RedCap. RedCap keeps the 5G NR core network features, including Standalone (SA) operation, while limiting the device to a 20 MHz FR1 channel and a 2RX/1TX antenna layout. The result is up to 226 Mbps downlink and 120 Mbps uplink on 5G, with 4G LTE fallback at up to 150 Mbps / 50 Mbps when 5G coverage is not available.
Both the main and diversity antennas are internal, which keeps the body clean and compact. Network mode defaults to automatic with 5G prioritized, and automatic network search and roaming are supported for travel use.
Dual-Band Wi-Fi 6 with Flexible SIM Options
The AIC8800D40L Wi-Fi 6 chipset serves both 2.4 GHz and 5 GHz bands with WPA/WPA2/WPA3-Personal security, SSID broadcast or hide, bandwidth selection and automatic or manual channel setting. Up to 10 devices can share the connection at the same time, and USB tethering is available through RNDIS.
For operators and travel-SIM programs, the M06 combines 2x Nano SIM slots with 2x eSIM profiles, so a single device can be provisioned for local and roaming plans. A 2.4-inch LCD shows signal, network mode, upload/download status, carrier logo, battery and charging state, rate, Wi-Fi status, connected user count and SMS notifications, and the unit also includes an NFC interface.
What 5G Redcap Means for Hotspot Buyers
5G RedCap is a 3GPP Release 17 device category, not a marketing label. A RedCap modem implements the 5G NR air interface, including Standalone (SA), but runs a 20 MHz FR1 channel with fewer antenna chains than a flagship 5G modem. For a personal hotspot the practical effect is straightforward: the M06 reaches 226 Mbps downlink and 120 Mbps uplink on 5G, compared with the 150 Mbps / 50 Mbps ceiling of an LTE Cat 4 hotspot, using a simpler radio design.
Because the cellular peak (226 Mbps) and the Wi-Fi 6 1x1 link rate (up to 286.8 Mbps) are in the same range, the wireless side is not the bottleneck. Real throughput depends on carrier configuration, band, signal quality and the number of connected clients, so validate on your target network. For a detailed explanation, read 5G RedCap MiFi Explained: Rel-17 Hotspot Design Guide.
Choosing Between the M06, R875H and M100
AceTel offers three MiFi tiers. Choose by the throughput and battery your users actually need rather than by the headline generation.
| Criterion | M100 | M06 | R875H |
|---|---|---|---|
| Cellular class | 4G LTE Cat 4 | 5G RedCap (Rel. 17) | 5G NR, Snapdragon SDX62 (Rel. 16) |
| Peak downlink | 150 Mbps | 226 Mbps (5G NR) | 3.16 Gbps (5G NSA) |
| Wi-Fi | 802.11 b/g/n, 2.4 GHz | Wi-Fi 6, dual-band, 1x1 | Wi-Fi 6 AX3000, dual-band, 2x2 |
| Battery | 2000mAh | 3500mAh, removable | 5000mAh |
| Best fit | Entry-level 4G programs | Mainstream 5G retail and operator bundles | Premium multi-gigabit use |
Details: M100 4G LTE MiFi · R875H 5G MiFi.
Datasheet
Technical Specifications
| Specification | Details |
|---|---|
| General | |
| Model | AceTel M06 |
| Product Type | 5G RedCap MiFi Wireless Hotspot |
| Dimensions | 125 mm x 65 mm x 16.5 mm |
| Appearance Finish | Raw plastic + printing |
| Weight | TBD |
| UI Language | English and Chinese (other languages by OEM/ODM request) |
| Platform | |
| Modem Chipset | Balong 5710 |
| Wi-Fi Chipset | AIC8800D40L |
| Memory (RAM/ROM) | 1Gbit + 1Gbit |
| Cellular | |
| UE Category | 3GPP Rel. 17 5G Reduced Capability (RedCap) |
| Network Support | 5G NR SA and 4G LTE; FR1 20 MHz, TDD and FDD |
| Peak Rate | NR: DL 226 Mbps / UL 120 Mbps; LTE: DL 150 Mbps / UL 50 Mbps |
| 5G Bands: Standard Version | n1 / n5 / n8 / n28 / n41 / n78 |
| 5G Bands: EU Version | n1 / n3 / n7 / n8 / n20 / n28 / n38 / n78 |
| 5G Bands: North America Version | n2 / n5 / n25 / n41 / n66 / n71 / n77 |
| LTE Bands: Standard Version | B1 / B3 / B5 / B8 / B34 / B39 / B40 / B41 |
| LTE Bands: EU Version | B1 / B3 / B7 / B8 / B20 / B28 / B38 / B40 |
| LTE Bands: North America Version | B2 / B4 / B5 / B12 / B13 / B14 / B17 / B25 / B26 / B41 / B66 / B71 |
| Regional Band Note | EU and North America band lists are regional variant targets; the final band list is confirmed by AceTel engineering at quotation, and approvals follow the final configuration |
| Cellular Antenna | 2RX/1TX; main and diversity antennas internal |
| RF Conducted Performance | Per AceTel company standard, otherwise 3GPP TS 38.521-1 (NR FR1) and TS 36.521-1 (LTE) |
| Wi-Fi | |
| Wi-Fi Standards | 2.4 GHz IEEE 802.11 b/g/n/ax; 5 GHz IEEE 802.11 a/n/ac/ax; up to 286.8 Mbps |
| Wi-Fi Antenna | 1x1 |
| Wi-Fi Bands | 2.4 GHz or 5 GHz |
| Encryption | TKIP / AES / SAE; WPA / WPA2 / WPA3-Personal |
| Hotspot Users | Up to 10 devices |
| Interfaces & Display | |
| USB Port | USB Type-C, USB 2.0 |
| SIM Card | 2x Nano SIM slots + 2x eSIM |
| NFC | Supported |
| Keys | Power ON/OFF, Menu, WPS, Reset |
| Display | 2.4-inch LCD: 5G/LTE signal, network mode, UL/DL status, carrier logo, battery and charging status, network rate, Wi-Fi status, connected user count, SMS |
| Power | |
| Battery | Li-ion, removable and rechargeable, 3.8V nominal, 3500mAh rated |
| Charger | Max 1.5A, follows SI9813, JEITA |
| Environment | |
| Operating Temperature / Humidity | 0 to 40°C / 0% to 90% |
| Storage Temperature / Humidity | -20 to 60°C (1 month) / 5% to 95% (168 h) |
| ESD Contact Discharge | ±2 kV, ±4 kV |
| ESD Air Discharge | ±2 kV, ±4 kV, ±8 kV |
| Software | |
| USB Mode | RNDIS virtual Ethernet driver, auto-configured on USB connection |
| SIM Management | PIN/PUK, SMS |
| Network Selection | Automatic (default, 5G > 4G priority), automatic network search, roaming |
| Wi-Fi Settings | SSID broadcast/hide, bandwidth, channel (auto/manual), SSID name/password/security |
| Management | Web UI, on-device GUI, local update, FOTA, backup and restore via Web UI |
| Certifications | CE, FCC, CCC, SRRC, China Network Access License (NAL), RoHS; others as required |
| Package Contents | 1x M06 device, 1x 3500mAh removable Li-ion battery, 1x USB 2.0 cable (Type-A to Type-C, L=30 mm), 1x gift box, 1x user guide |
Deployment Scenarios
Applications & Use Cases
Operator Retail MiFi Programs
A 5G RedCap hotspot with carrier logo display and dual SIM plus eSIM provisioning for branded mobile broadband bundles.
Business Travel Connectivity
Dual-band Wi-Fi 6 sharing for up to 10 devices, with automatic roaming and network search for frequent travelers.
Home & Small-Office Backup Internet
A plug-in or battery-powered 5G/4G fallback link for locations without reliable fixed broadband.
Temporary Sites & Events
Quick-deploy connectivity for pop-up shops, field teams and short-term offices where wired access is not available.
Related Technical Insights & Guides
- 5G RedCap Explained: 5G RedCap MiFi Explained: Rel-17 Hotspot Design Guide
- Launch Announcement: AceTel Launches M06 5G RedCap MiFi with Wi-Fi 6
- White Label Guide: How to White Label a 5G RedCap MiFi: Steps, MOQ, Timeline
- Platform Choice: 5G CPE vs 4G Router: How to Choose for Your Deployment
FAQ
Frequently Asked Questions
Frequently asked questions about technical specifications, carrier compliance, customization, and ordering for M06.
What is 5G RedCap and why is it used in the M06?
5G RedCap (Reduced Capability) is the 3GPP Release 17 device category that trims antennas and bandwidth to 20 MHz on FR1 while keeping true 5G NR features. The M06 uses it to deliver up to 226 Mbps downlink in a compact, battery-friendly hotspot, which suits portable use better than a full-bandwidth 5G modem.
Does the M06 support both 5G and 4G networks?
Yes. The M06 supports 5G NR SA and 4G LTE. Network mode is automatic by default with 5G prioritized over 4G, and automatic network search and roaming are supported. Band coverage is 5G n1/n5/n8/n28/n41/n78 and LTE B1/B3/B5/B8/B34/B39/B40/B41.
How many SIM cards and devices can the M06 handle?
The M06 provides 2x Nano SIM slots and 2x eSIM profiles, with PIN/PUK management. The Wi-Fi hotspot supports up to 10 connected devices over 2.4 GHz or 5 GHz.
Which certifications does the M06 carry?
The M06 is supported with CE, FCC, CCC, SRRC, China Network Access License (NAL) and RoHS certifications, and other approvals can be arranged as required. Carrier or country-specific approvals depend on the target band configuration, so confirm scope with our team before ordering.
Which regions do the M06 frequency bands cover?
M06 is offered in three band configurations. Standard: 5G n1/n5/n8/n28/n41/n78 and LTE B1/B3/B5/B8/B34/B39/B40/B41. EU version: 5G n1/n3/n7/n8/n20/n28/n38/n78 and LTE B1/B3/B7/B8/B20/B28/B38/B40. North America version: 5G n2/n5/n25/n41/n66/n71/n77 and LTE B2/B4/B5/B12/B13/B14/B17/B25/B26/B41/B66/B71. Regional band lists are confirmed by AceTel engineering at quotation, and certification scope follows the final band configuration.
Can AceTel customize the M06 for operators and brands?
Yes. AceTel supports OEM/ODM customization of the housing finish, silk-screened logo, display carrier logo, UI language, firmware defaults and packaging. Contact our team for MOQ and lead time.
